2007 Mazda Mazdaspeed3 L4-2.3L TurboFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Testing and Inspection
VEHICLE SPEED SENSOR INSPECTION (WITHOUT ABS) [G36M-R]
1. Remove the vehicle speed sensor.

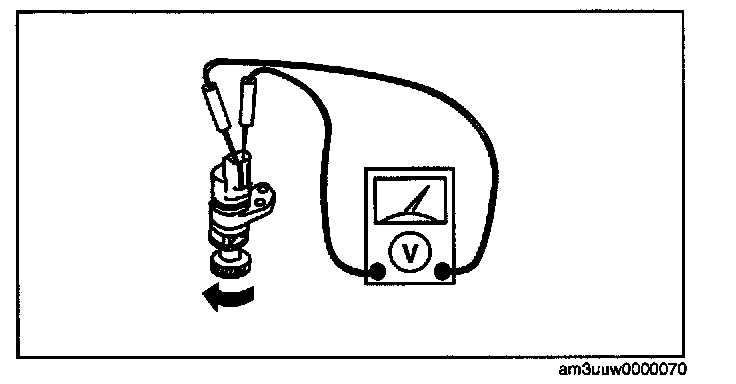

2. Measure the voltage between the vehicle speed sensor terminals while the gear is turning.
3. Install the vehicle speed sensor.
1. Remove the vehicle speed sensor.
2. Measure the voltage between the vehicle speed sensor terminals while the gear is turning.
3. Install the vehicle speed sensor.
