2007 Mazda CX-9 V6-3.5LFACTORY OEM SERVICE PROCEDURE
Keyless Entry System
TRANSMITTER BATTERY REPLACEMENT [KEYLESS ENTRY SYSTEM]
1. Insert a small flathead screwdriver into the transmitter notch and remove the key from the transmitter by pressing the tab.
2. Insert a small flathead screwdriver into the transmitter notch and the transmitter.
3. Remove the battery.

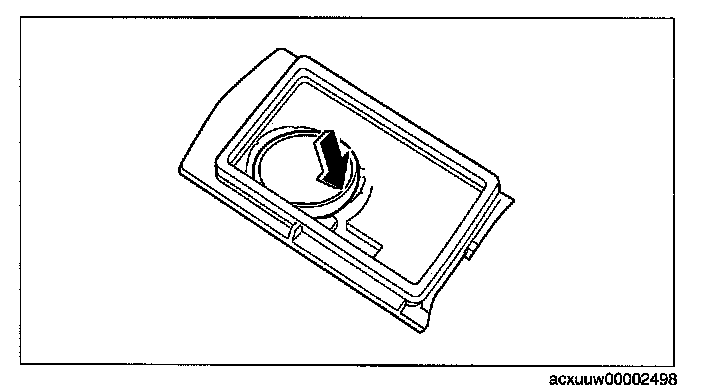

4. Install the new battery (CR1620) with the positive pole facing down.
5. Align the upper and lower cover and close the transmitter.
Used battery : Lithium battery CR1620
Battery life : Approx. 2 years (when used 10 times/day)
6. Install the key to the transmitter.
1. Insert a small flathead screwdriver into the transmitter notch and remove the key from the transmitter by pressing the tab.
2. Insert a small flathead screwdriver into the transmitter notch and the transmitter.
3. Remove the battery.
4. Install the new battery (CR1620) with the positive pole facing down.
5. Align the upper and lower cover and close the transmitter.
Used battery : Lithium battery CR1620
Battery life : Approx. 2 years (when used 10 times/day)
6. Install the key to the transmitter.
