2007 Mazda CX-7 Touring, FWDFACTORY OEM SERVICE PROCEDURE
Continuity Inspection
- Inspect the following if the power steering is inoperative (See
POWER STEERING FLUID INSPECTION
.):
- Power steering fluid level
- Power steering fluid leakage
- Power steering fluid pressure
- Disconnect the PSP switch connector.
- Start the engine.
- Inspect for continuity between the PSP switch terminal and ground using a tester.
- If not as specified, replace the PSP switch. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION ).
- If the PSP switch is normal, but PID value is out of specification, perform the "Circuit Open/Short Inspection".

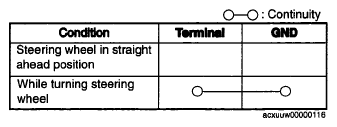

Specification
