2007 Mazda CX-7 Touring, FWDFACTORY OEM SERVICE PROCEDURE

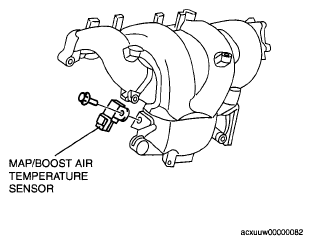

Manifold Absolute Pressure (Map) Sensor/Boost Air Temperature Sensor Removal/Installation
- Disconnect the negative battery cable.
- Remove the charge air cooler duct. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Remove the oil level gauge pipe. (See OIL PAN REMOVAL/INSTALLATION ).
- Disconnect the MAP/boost air temperature sensor connector.
- Remove MAP/boost air temperature sensor from the intake manifold.
- Install in the reverse order of removal.
Tightening torque
5.0-7.0 N.m {51-71 kgf.cm, 45-61 in.lbf}
