2007 Mazda CX-7 Touring, FWDFACTORY OEM SERVICE PROCEDURE

Front Abs Wheel-Speed Sensor Removal/Installation

Perform the following procedure and remove the LF ABS wheel-speed sensor.
1. Remove the battery and battery tray.
2. Remove the air cleaner component and air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC] ).
Remove in the order indicated in the figure.
Install in the reverse order of removal.

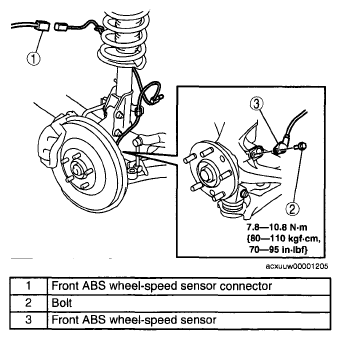

Fig 1: Front ABS Wheel-Speed Sensor Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
