2007 Mazda B4000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Spring Lock Couplings: Connect

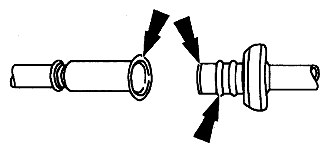

Inspect and clean both the coupling ends.

Fig 1: Locating Coupling Ends
Courtesy of MAZDA MOTORS CORP.

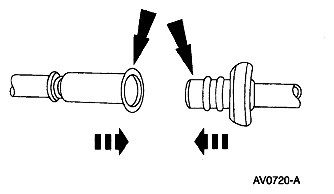

Connect the fitting by inserting the male end into the female end of the fitting. Push the fitting together until the garter spring is engaged.

Fig 2: Inserting Male End Into Female End Of Fitting
Courtesy of MAZDA MOTORS CORP.
Pull on the fitting to make sure it is fully engaged.

Fig 3: Pulling On Fitting To Make Sure It Is Fully Engaged
Courtesy of MAZDA MOTORS CORP.
Install the safety clip.

Fig 4: Identifying Safety Clip

Courtesy of MAZDA MOTORS CORP.
