2007 Mazda B3000 V6-3.0LFACTORY OEM SERVICE PROCEDURE
System Specifications
Cylinder Head
Install the new bolts.
Tighten the bolts in four steps in the sequence shown.
Stage 1 Tighten to 80 Nm (8.2 kgf-m, 59 ft. lbs.)
Stage 2 Loosen the bolts one full turn.
Stage 3 Tighten to 50 Nm (37 ft. lbs.)
Stage 4 Tighten to 92 Nm (68 ft. lbs.)
Crankshaft Pulley
Flexplate
Tighten the bolts in a criss-cross pattern.

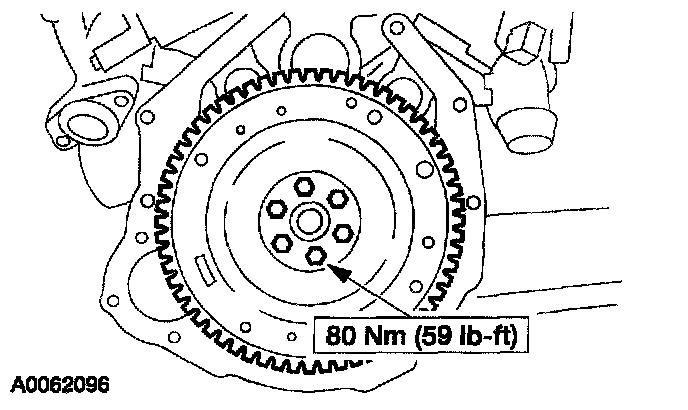

Flywheel
Install the six bolts. Tighten the bolts is a criss-cross pattern.
Water Pump
Install the new bolts.
Tighten the bolts in four steps in the sequence shown.
Stage 1 Tighten to 80 Nm (8.2 kgf-m, 59 ft. lbs.)
Stage 2 Loosen the bolts one full turn.
Stage 3 Tighten to 50 Nm (37 ft. lbs.)
Stage 4 Tighten to 92 Nm (68 ft. lbs.)
Crankshaft Pulley
Flexplate
Tighten the bolts in a criss-cross pattern.
Flywheel
Install the six bolts. Tighten the bolts is a criss-cross pattern.
Water Pump
