2007 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Ignition Specifications - 4.0L

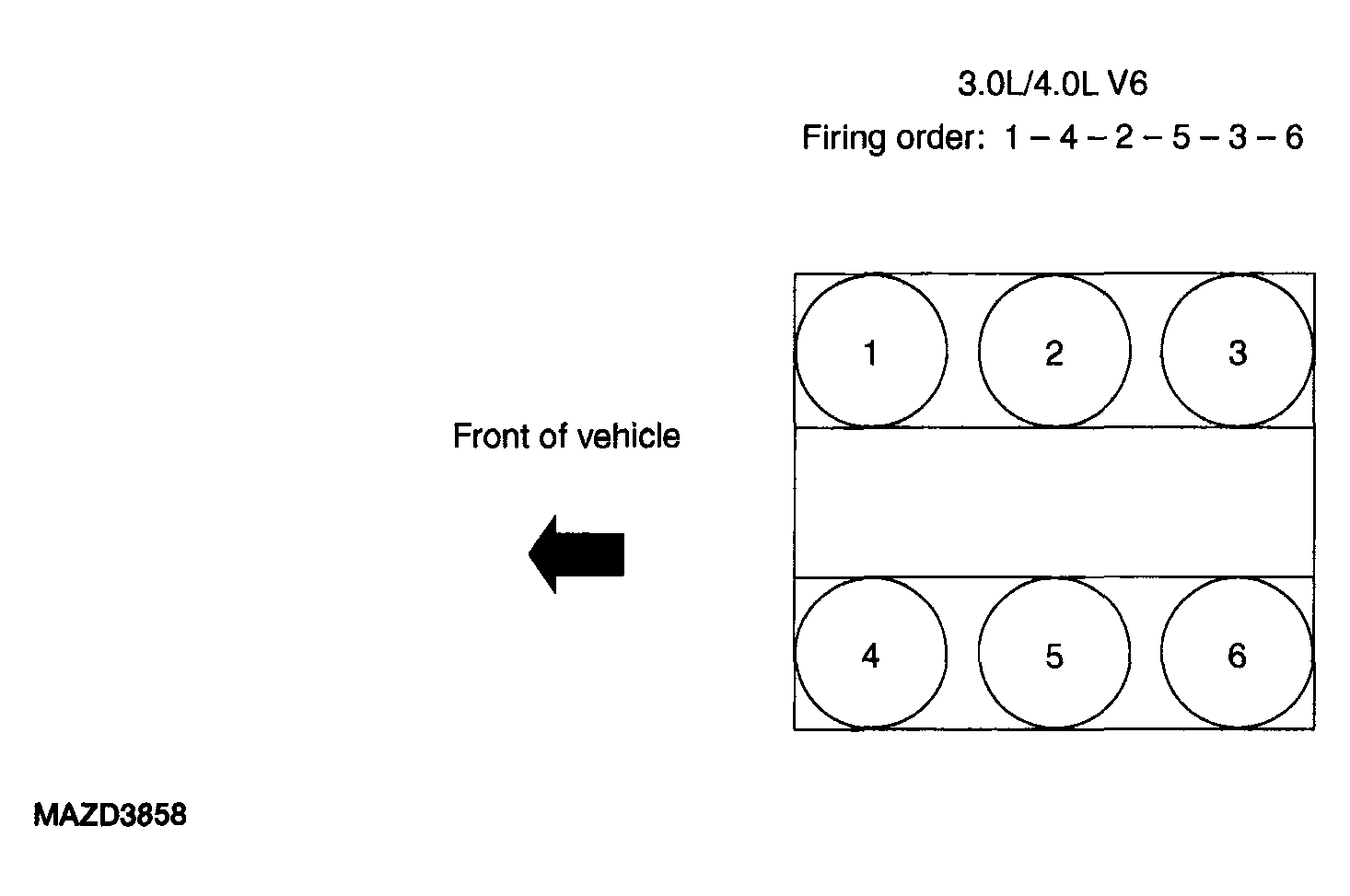

Fig 1: Identifying 4.0L Firing Order

Courtesy of MAZDA MOTORS CORP.

ENGINE IGNITION SPECIFICATIONS -4.0L

Item	Specification
Timing	Not Adjustable
Firing Order	1-4-2-5-3-6
Right Side Original Spark Plug	AGSF-22PG
Left Side Original Spark Plug	AGSF-22P
Replacement Spark Plug (Either Side)	ZZN2-18-110 or AGSF-22PP
Spark Plug Gap	1.57-1.73mm (0.061-0.068 in)
