2007 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Throttle Position (TP) Sensor Removal / Installation - 4.0L

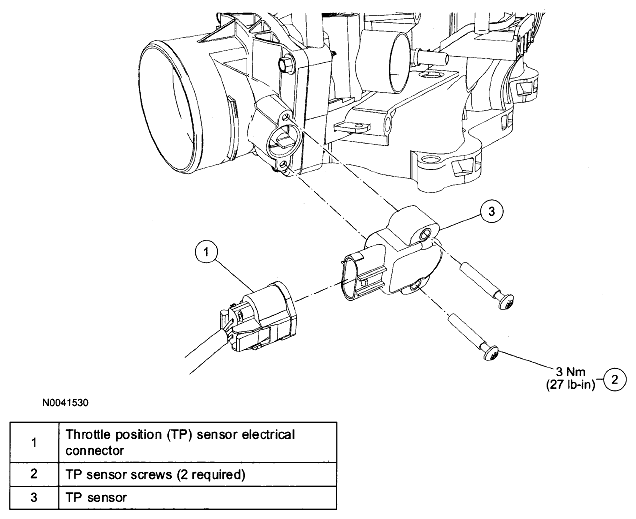

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications - 4.0L

Courtesy of MAZDA MOTORS CORP.

Remove the accelerator control splash shield.

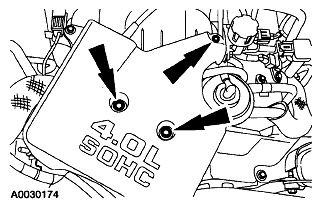

Fig 2: Locating Accelerator Control Splash Shield Screws
Courtesy of MAZDA MOTORS CORP.
Remove the throttle position (TP) sensor.

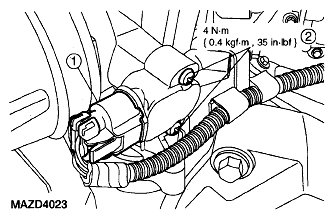

Fig 3: TP Sensor Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
1. Disconnect the electrical connector.
2. Remove the bolts and the TP sensor.
To install, reverse the removal procedure.
