2007 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Clutch Pedal Position (CPP) Switch Removal / Installation

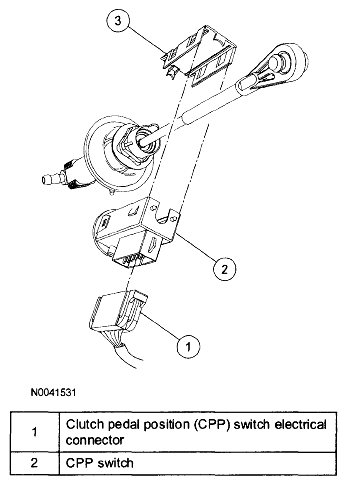

Fig 1: Identifying Clutch Pedal Position (CPP) Switch Components

Courtesy of MAZDA MOTORS CORP.

Disconnect negative battery cable. See BATTERY DISCONNECT .
Disconnect clutch pedal position (CPP) switch electrical connector.

Fig 2: Disconnecting Clutch Pedal Position Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Spread the CPP switch apart and remove from the pedal rod.

Fig 3: Removing CPP Switch
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
