2007 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Camshaft Position (CMP) Sensor Removal / Installation - 2.3L

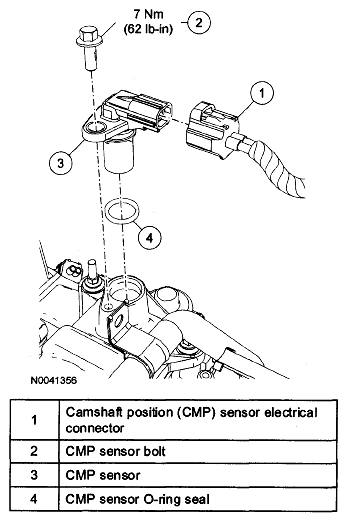

Fig 1: Camshaft Position (CMP) Sensor Replacement Components With Torque Specifications - 2.3L

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. See BATTERY DISCONNECT .

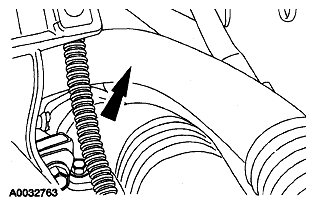

Fig 2: Locating Camshaft Position (CMP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the camshaft position (CMP) sensor electrical connector.

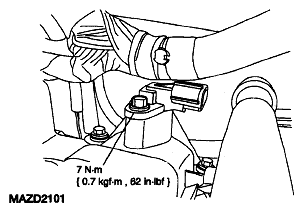

Fig 3: CMP Sensor Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and the CMP sensor.
NOTE:
- Lubricate the O-ring with clean engine oil.
To install, reverse the removal procedure.
