2007 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

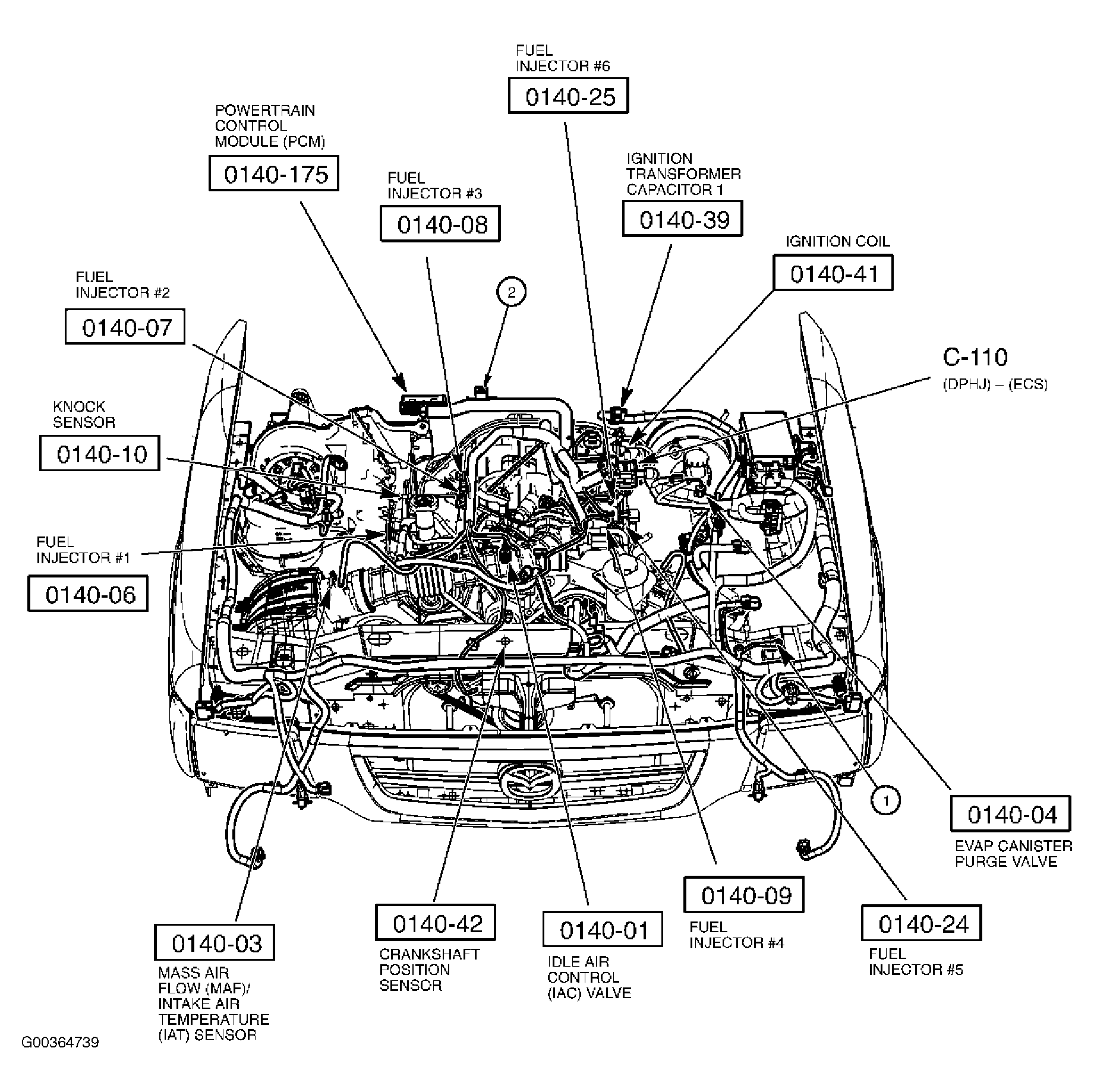

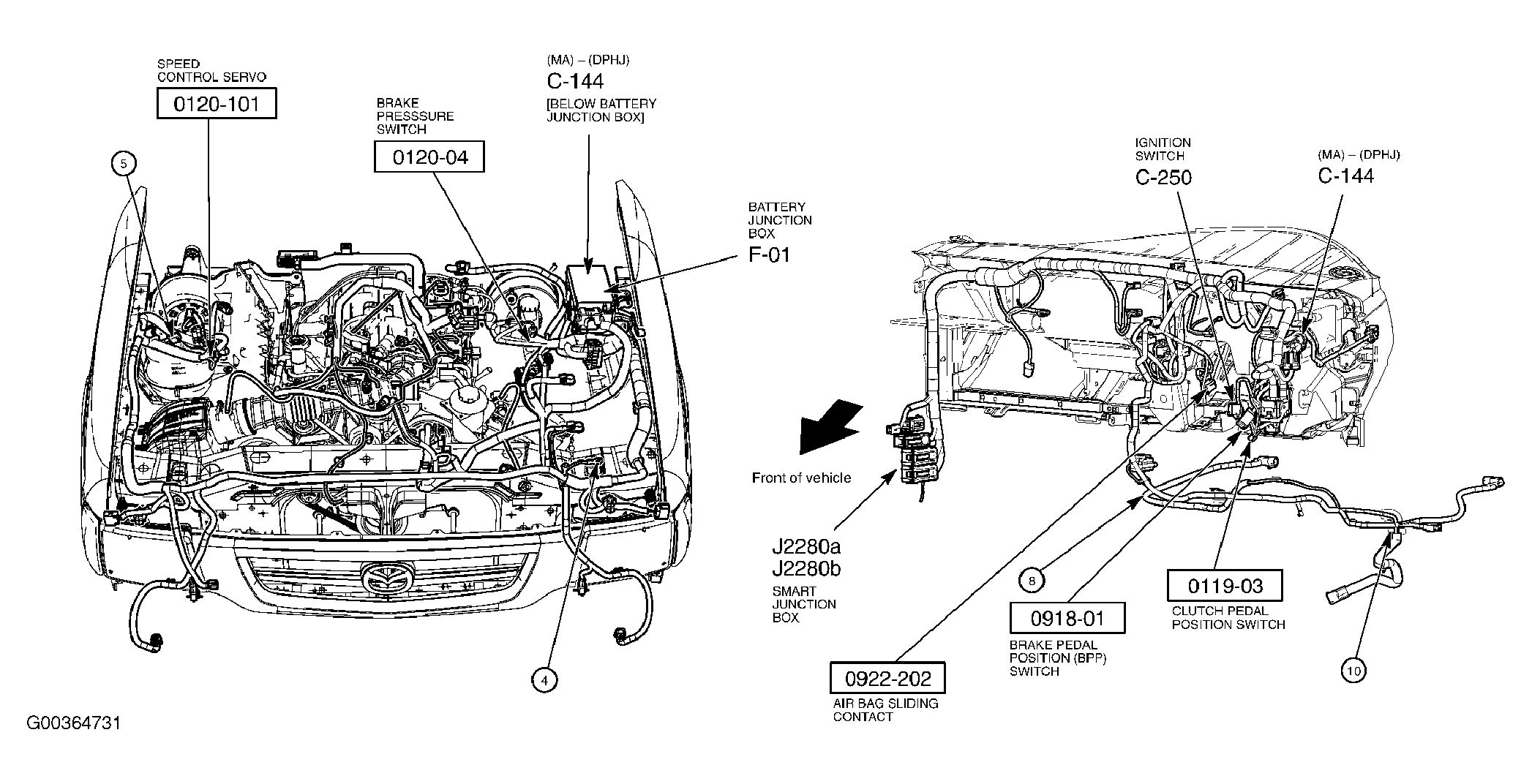

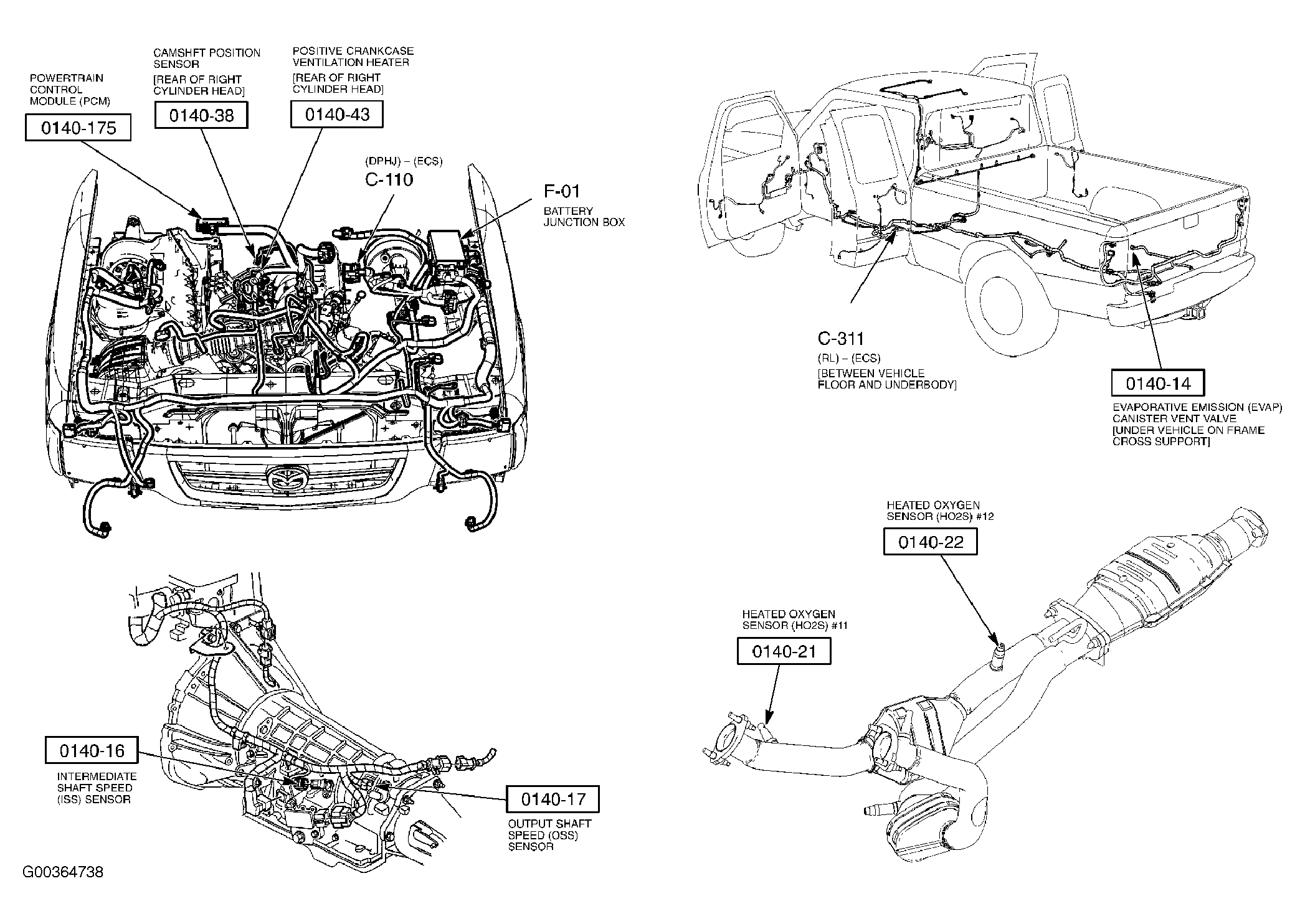

| Air Bag Sliding Contact | On steering column. See Figure. |
| Battery Blanket | On battery. See Figure. |
| Clutch Triple Function Switch Jumper | Behind dash, left of steering column. See Figure. |
| Data Link Connector (DLC) | Fastened to bottom of dash, near steering column. See Figure. |
| Driver Safety Belt Retractor Pretensioner | At driver safety belt retractor assembly. See Figure. |
| Engine Block Heater Cable Plug | Below left side of front bumper. See Figure. |
| Engine Block Heater Element | Below exhaust manifold. See Figure. |
| Generator | At right front of engine. See Figure. |
| Heater Blower Motor Resistor (Front) | Right rear of engine compartment, near blower motor. See Figure. |
| Ignition Coil (2.3L) | On top right rear of engine. See Figure. |
| Ignition Coil (3.0L) | On rear of engine. See Figure. |
| Ignition Coil (4.0L) | On left rear of engine. See Figure. |
| Ignition Transformer Capacitor 1 | At left rear of engine compartment. See Figure. |
| Passenger Safety Belt Retractor Pretensioner | At front passenger safety belt retractor assembly. See Figure. |
| PCM Power Diode | In battery junction box. See Figure. |
| Positive Crankcase Ventilation Heater (3.0L) | At rear of right cylinder head. See Figure. |
| 5R44E Transmission Connector | At left side of transmission. See Figure. |
