2007 Mazda B2300 StandardFACTORY OEM SERVICE PROCEDURE
Hood Latch Switch Inspection
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Open the hood.
- Disconnect the negative battery cable.
- Disconnect the hood latch switch connector.

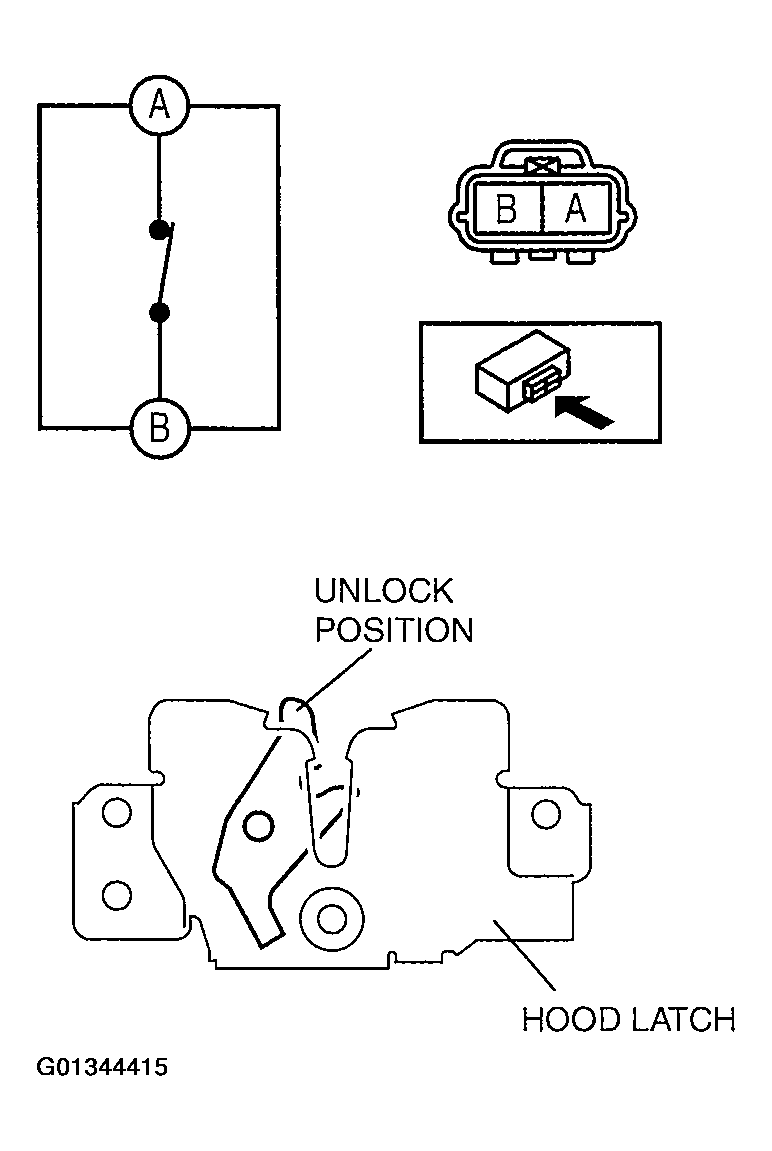

- Inspect for continuity between the hood latch switch terminals A and B.
- If there is no continuity, replace the hood latch switch.

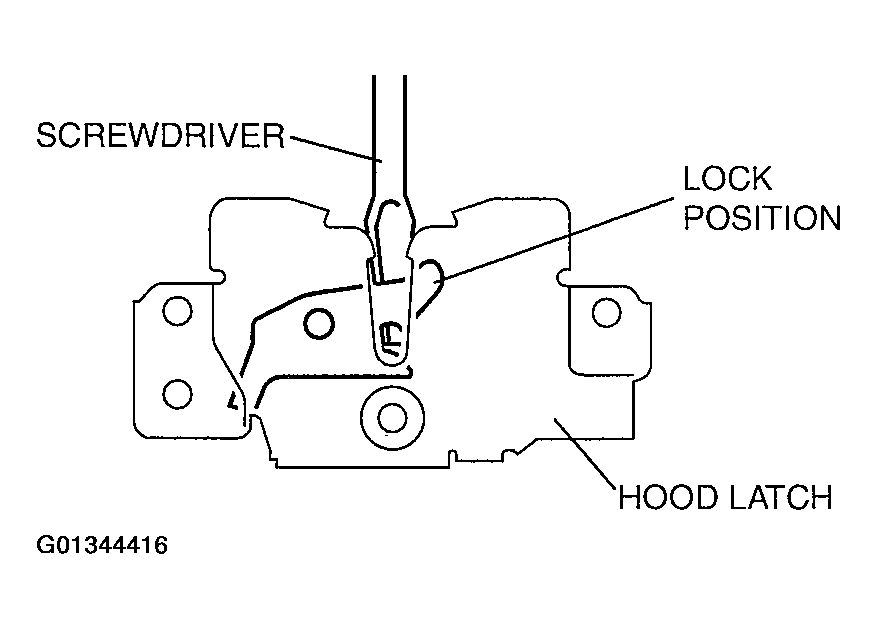

- Lock the hood latch using a flathead screwdriver or equivalent as shown.
- Inspect for continuity between the hood latch switch terminals A and B
- If there is continuity, replace the hood latch.
CAUTION:- After the inspection, unlock the hood latch. If closing the hood with the hood latch locked, the hood latch and/or hood striker may be broken.
