2007 Mazda B2300 StandardFACTORY OEM SERVICE PROCEDURE
Door Lock Switch Removal/Installation: RH
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

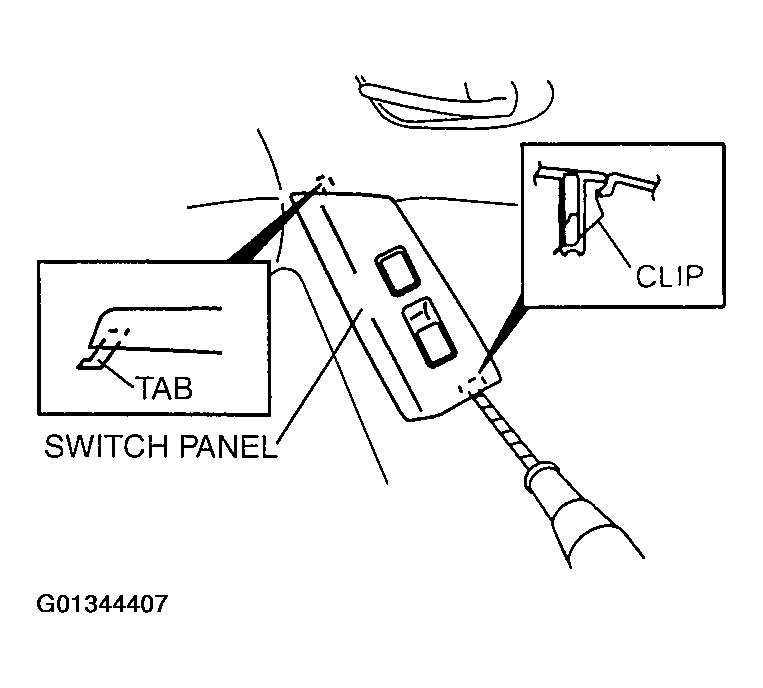

- Using a flathead screwdriver wrapped with protective tape, pry up the rear of the switch panel and detach the clip.
- Remove the switch panel from the front door trim keeping the tab from catching.
- Disconnect the power door lock switch connector and the power window sub-switch connector.

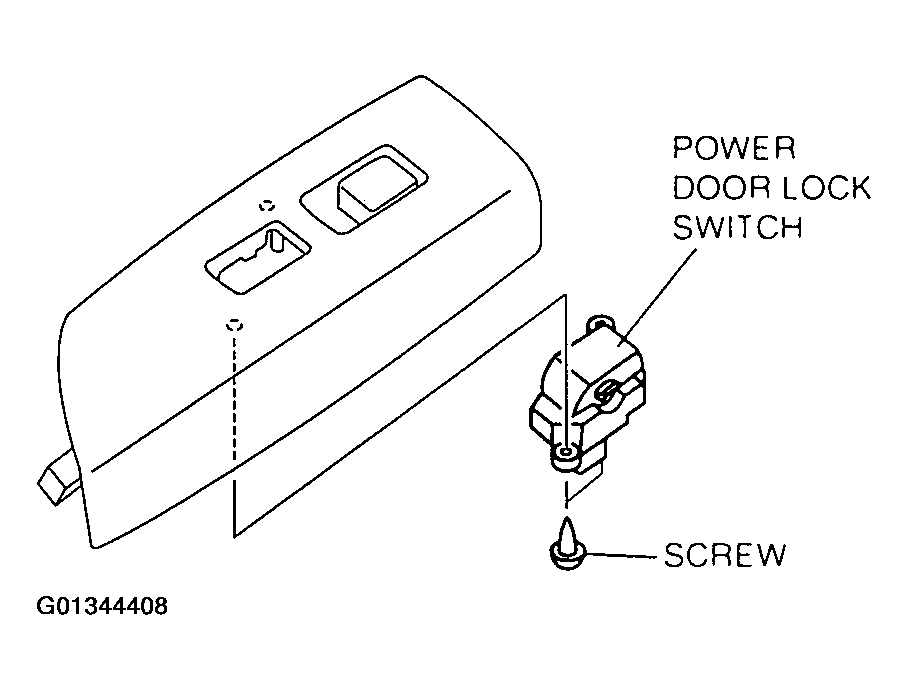

- Remove the screws, then remove the power door lock switch.
- Install in the reverse order of removal.
