2007 Mazda B2300 StandardFACTORY OEM SERVICE PROCEDURE

Door Lock Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the door lock switch terminals.
- If not as specified, replace the door lock switch.

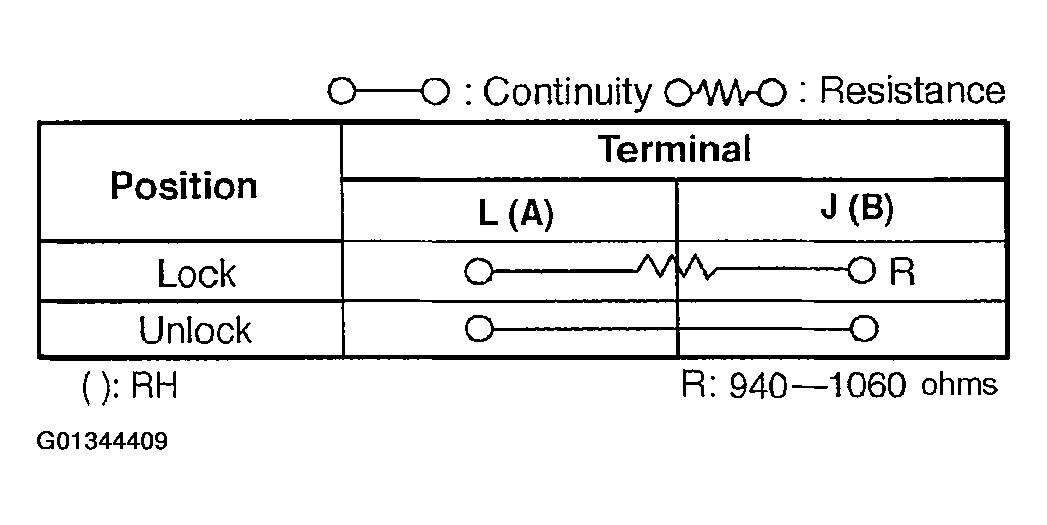

Fig 1: Door Lock Switch Connector Terminal Continuity
Courtesy of MAZDA MOTORS CORP.
