2007 Mazda 6 s, 4D Hatchback, AutomaticFACTORY OEM SERVICE PROCEDURE
Resistance Inspection
- Disconnect the negative battery cable.
- Disconnect the KS connector.

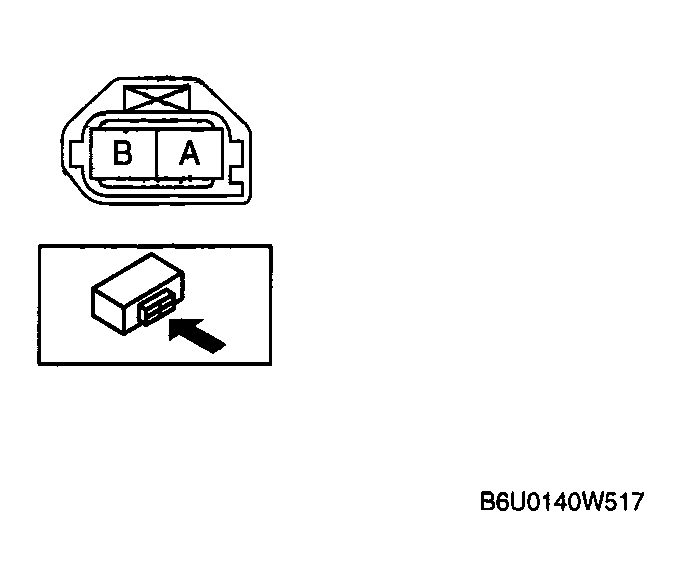

- Measure the resistance between KS terminals A and B using an ohmmeter.
- If the KS is okay, but the PID value is out of specification, perform the "Circuit Open/Short Inspection".
- If not as specified, replace the KS. (See
KNOCK SENSOR (KS) REMOVAL/INSTALLATION ).
Specification
Approx. 4.87 megohms (20°C {68°F})
