2007 Mazda 6 V6-3.0LFACTORY OEM SERVICE PROCEDURE
Intake Manifold
INTAKE AIR SYSTEM [AJ]
Intake Manifold Installation Note

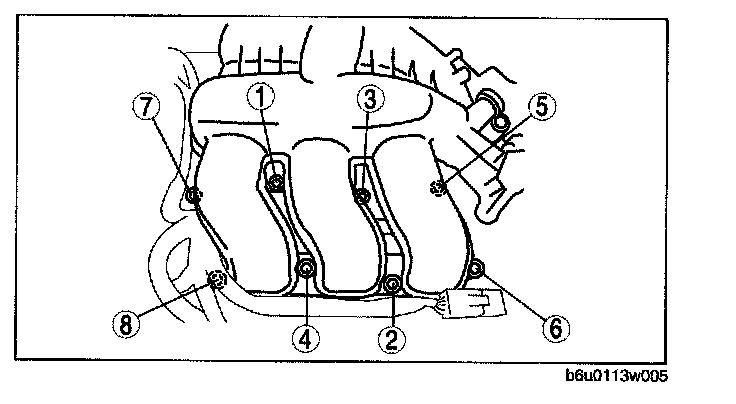

1. Tighten the intake manifold installation bolts in the order indicated.
Tightening torque
6 - 12 Nm {82 - 122 kgf-cm, 72 - 106 in-lbf}
Dynamic Chamber Installation Note
1. Tighten the dynamic chamber installation bolts in the order indicated.
Tightening torque
6 - 12 Nm (82 - 122 kgf-cm, 72 - 106 in-lbf}
Intake Manifold Installation Note
1. Tighten the intake manifold installation bolts in the order indicated.
Tightening torque
6 - 12 Nm {82 - 122 kgf-cm, 72 - 106 in-lbf}
Dynamic Chamber Installation Note
1. Tighten the dynamic chamber installation bolts in the order indicated.
Tightening torque
6 - 12 Nm (82 - 122 kgf-cm, 72 - 106 in-lbf}
