2007 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE

Transmission/Transaxle SST

  1. Mazda SST number
  2. Global SST number

    Example

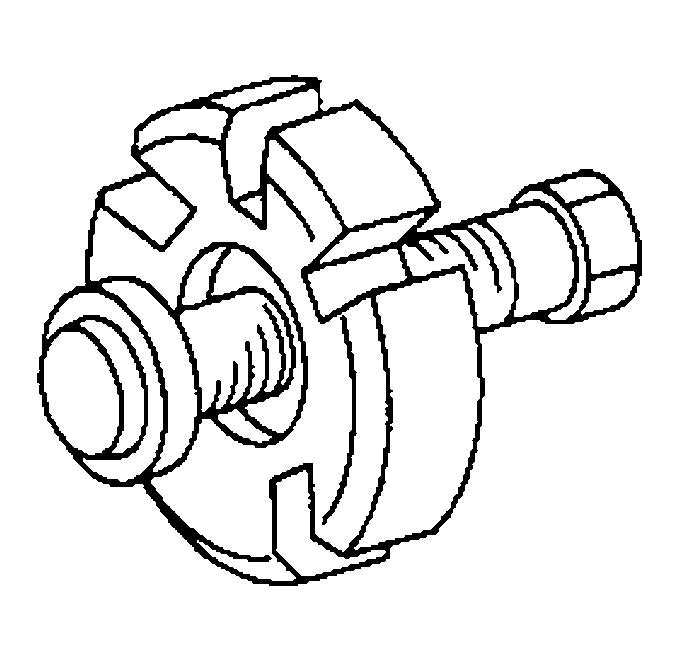

    Fig 1: Identifying SST
    G04326494Courtesy of MAZDA MOTORS CORP.
SST DESCRIPTION

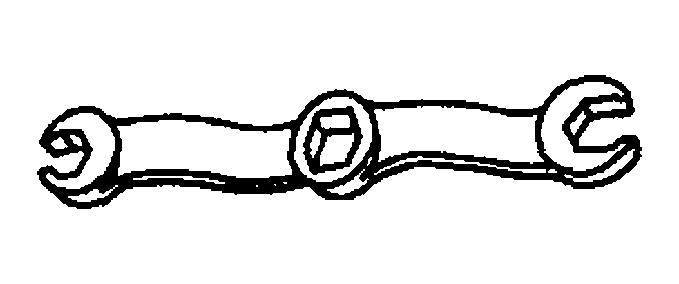

1:49 0259 770B
2:-
Flare nut wrench
G04326495Courtesy of MAZDA MOTORS CORP.

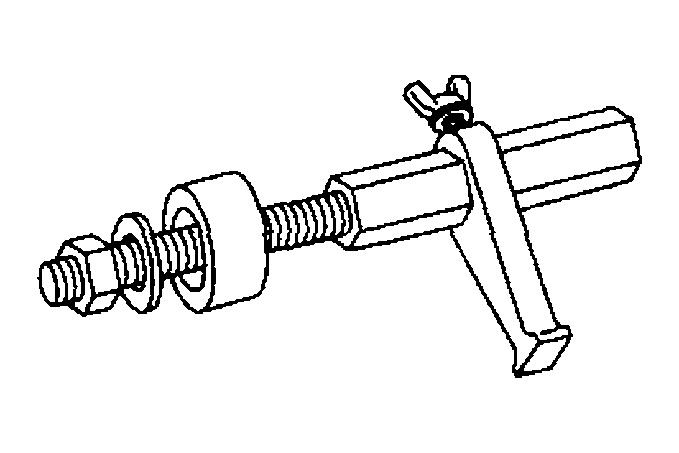

 1:49 E011 1A0
2:-
Ring gear brake set
G04326496Courtesy of MAZDA MOTORS CORP.

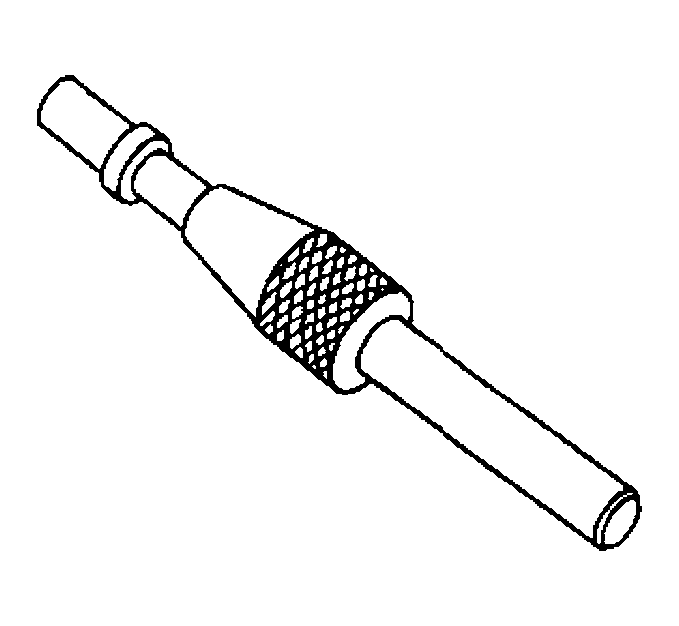

 1:49 SE01 310A
2:-
Clutch disc centering tool
G04326497Courtesy of MAZDA MOTORS CORP.

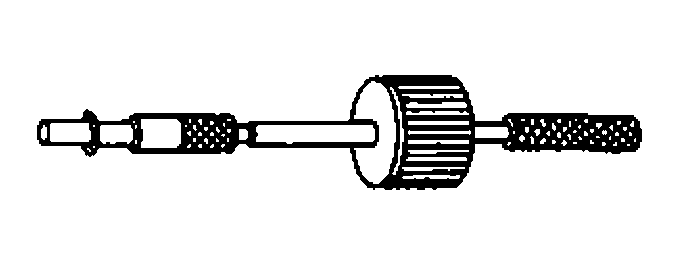

1:49 1285 071
2:-
Bearing puller
G04326498Courtesy of MAZDA MOTORS CORP.

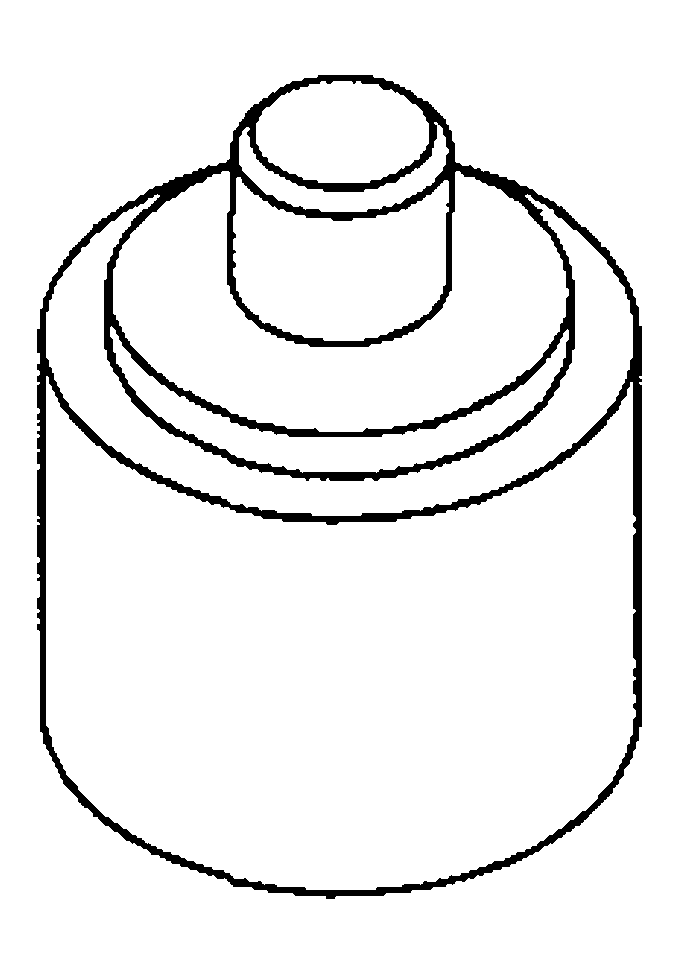

 1:49 UN30 8157
2:308-157
Pilot bearing installer
G04326499Courtesy of MAZDA MOTORS CORP.

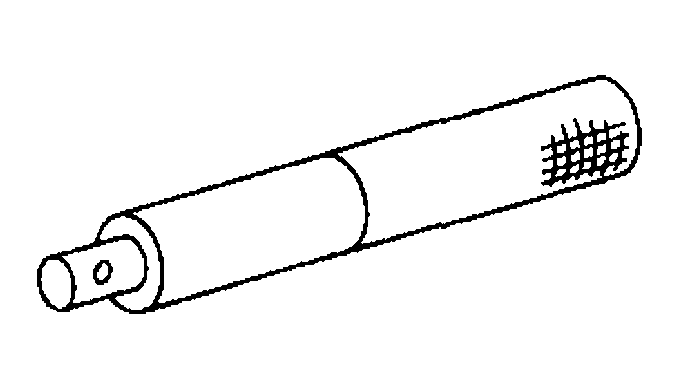

 1:49 UN20 5153
2:205-153
Handle
G04326500Courtesy of MAZDA MOTORS CORP.

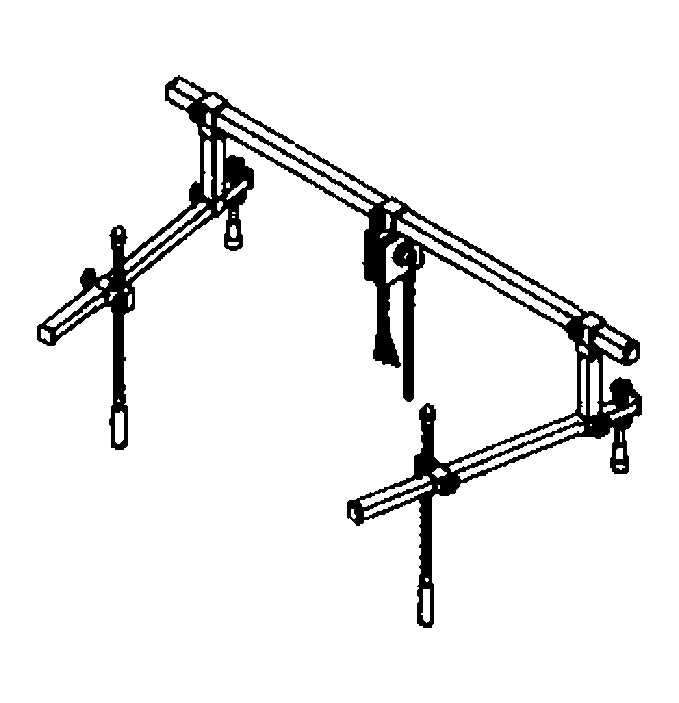

1:49C017 5A0(1)
2:-
Engine support
G04326501Courtesy of MAZDA MOTORS CORP.

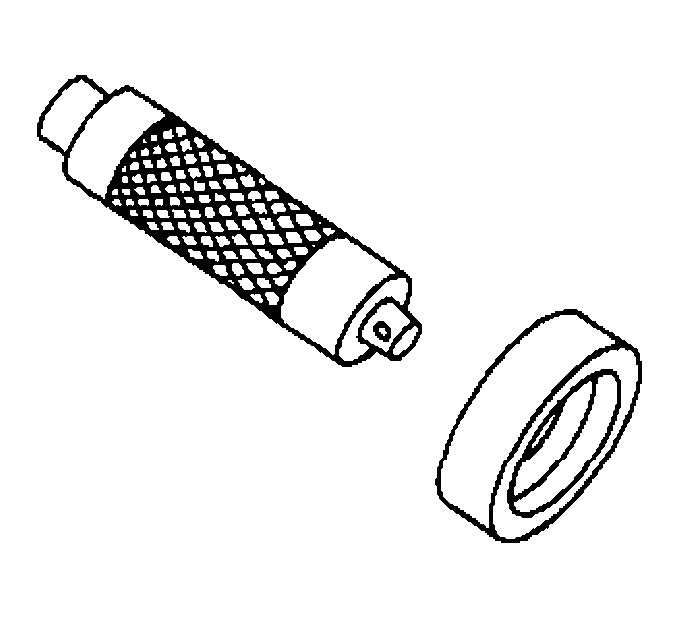

 1:49 G030 795
2:-
Oil seal installer
G04326502Courtesy of MAZDA MOTORS CORP.

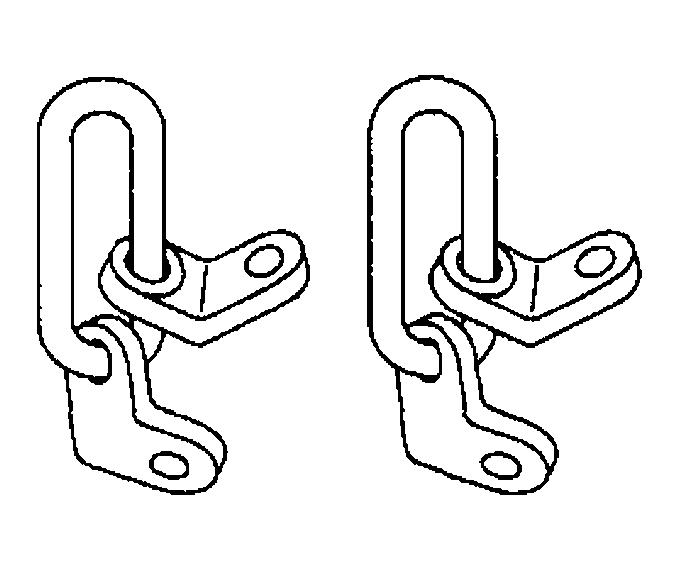

 1:49 UN30 3050
2:303-050
Engine lifting bracket
G04326503Courtesy of MAZDA MOTORS CORP.

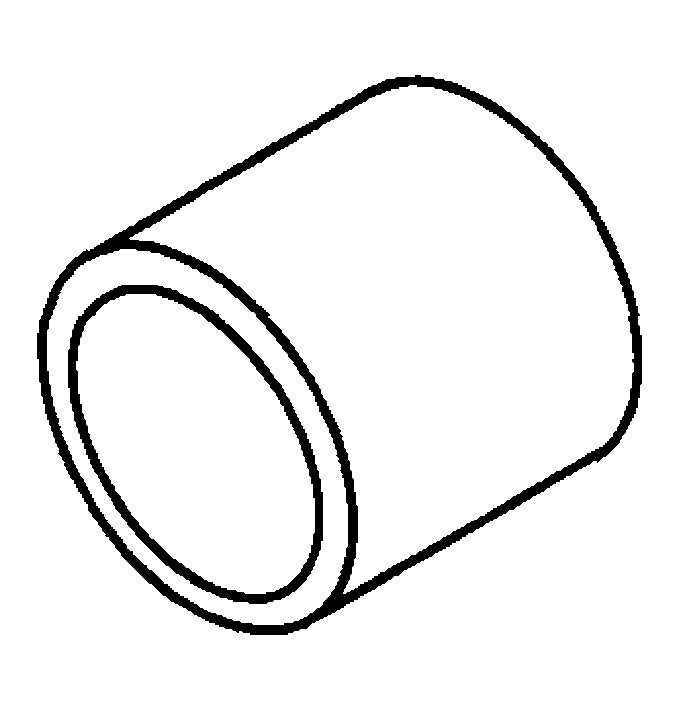

1:49 U027 003
2:-
Oil seal installer
G04326504Courtesy of MAZDA MOTORS CORP.

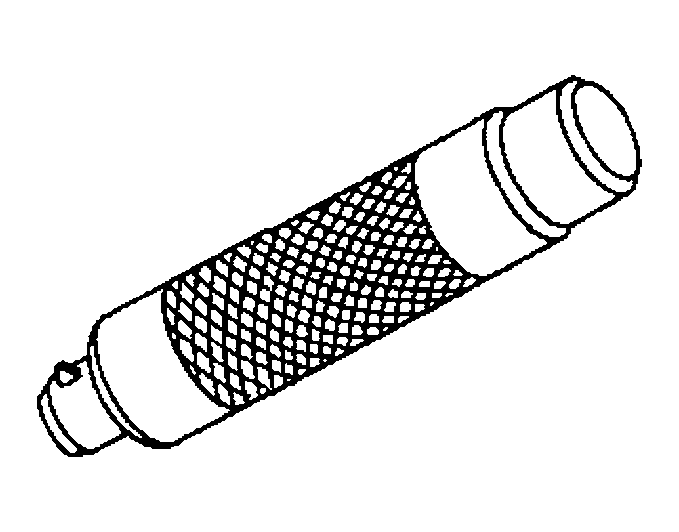

 1:49 G030 797
2:-
Handle
G04326505Courtesy of MAZDA MOTORS CORP.

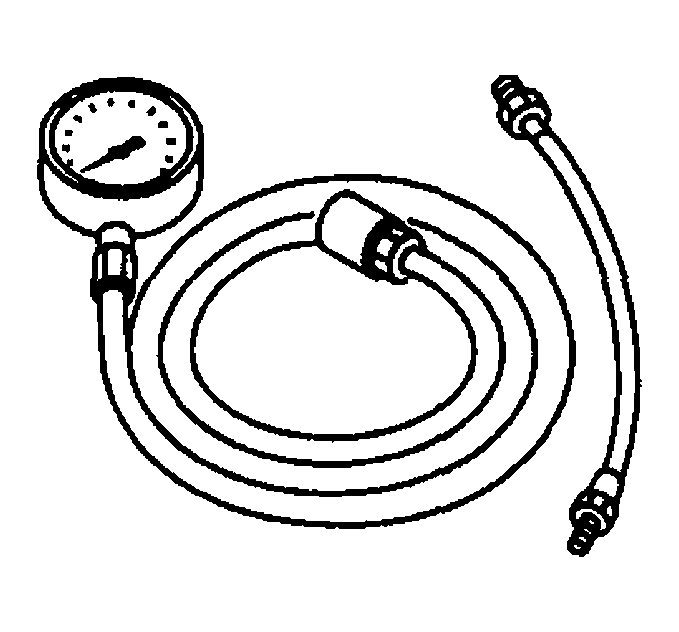

 1:49 0378 400C
2:-
Oil pressure gauge set
G04326506Courtesy of MAZDA MOTORS CORP.

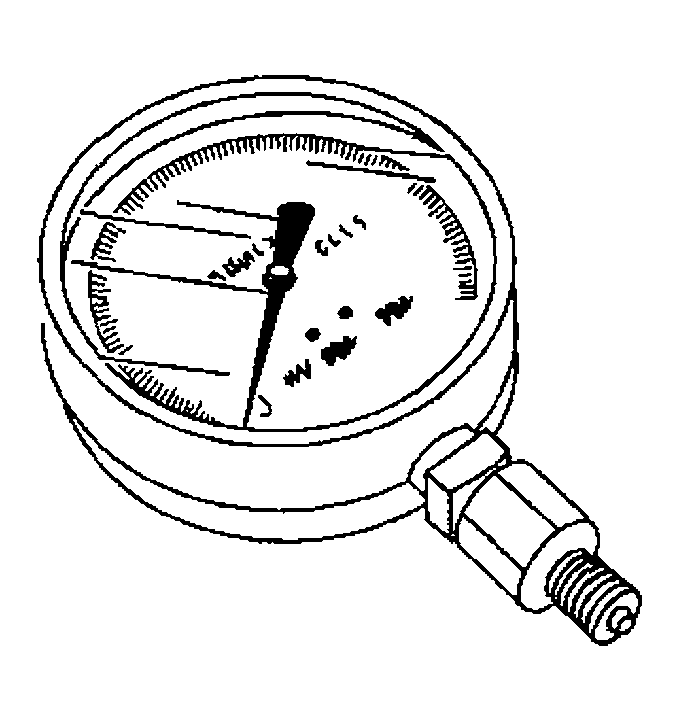

1:49 B019 901B
2:-
Oil pressure gauge
G04326507Courtesy of MAZDA MOTORS CORP.

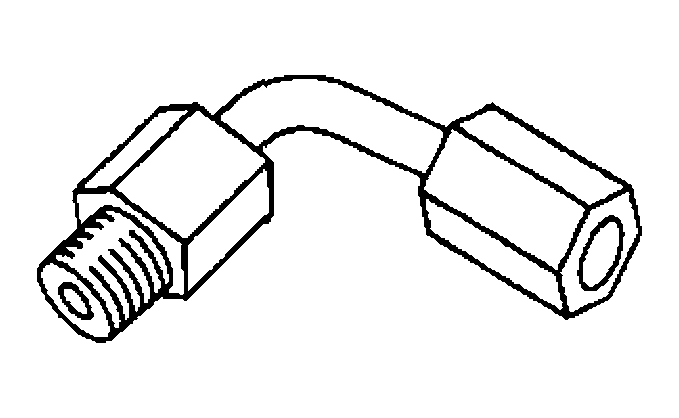

 1:49 H019 002
2:-
Adapter
G04326508Courtesy of MAZDA MOTORS CORP.

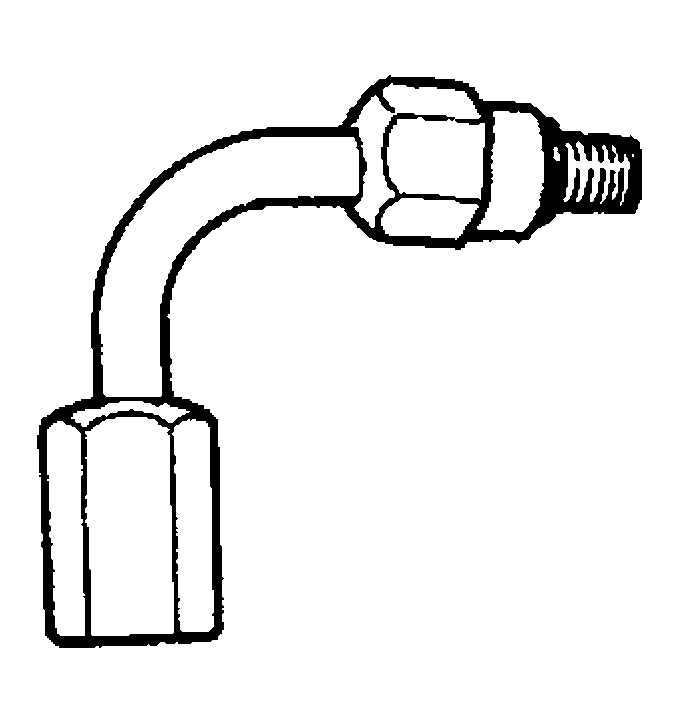

 1:49 HD64
406A
2:-
Adapter
G04326509Courtesy of MAZDA MOTORS CORP.

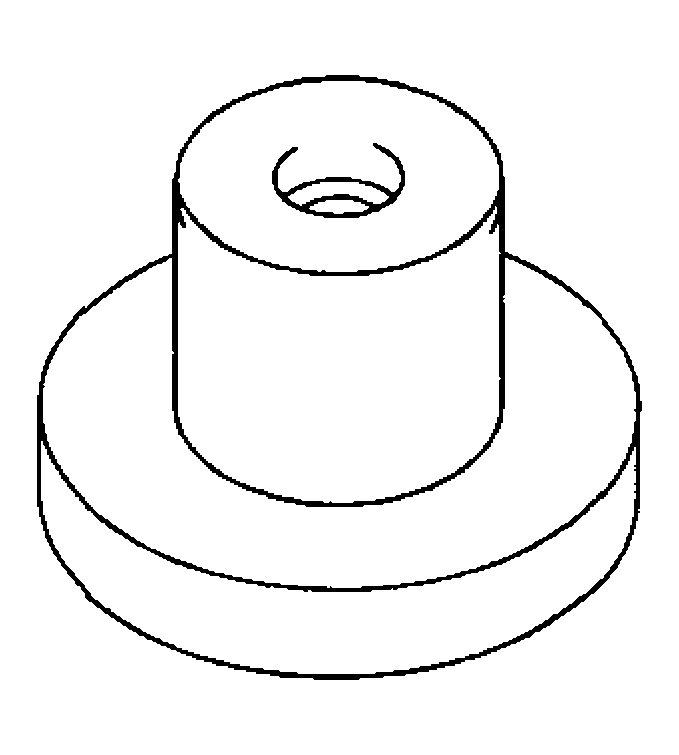

1:49 F026 102
2:-
Bearing replacer
G04326510Courtesy of MAZDA MOTORS CORP.
 1.49 H028 202
2:-
Block L
G04326511Courtesy of MAZDA MOTORS CORP.

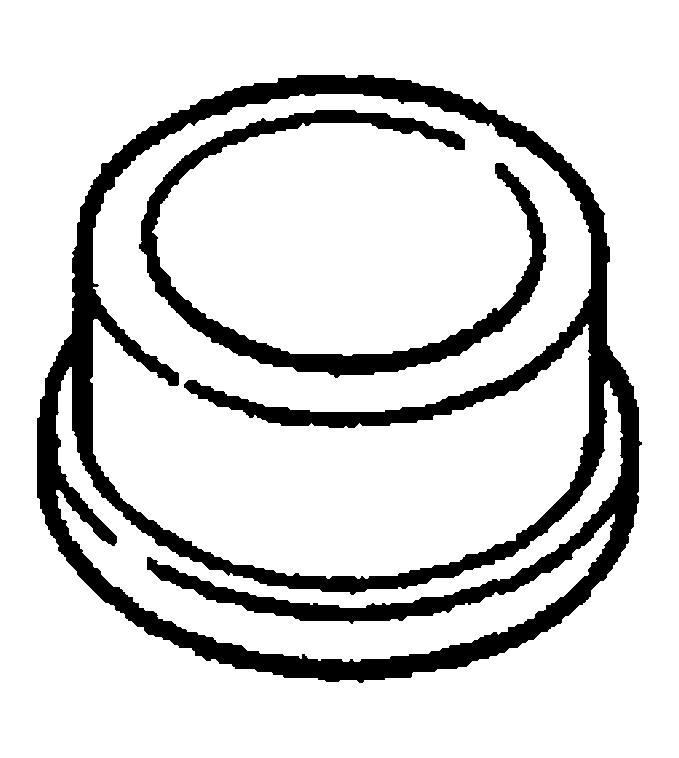

 1:19 027 009
2:-
Attachment for 68&77 (Part of 49 F027 0A1)
G04326512Courtesy of MAZDA MOTORS CORP.

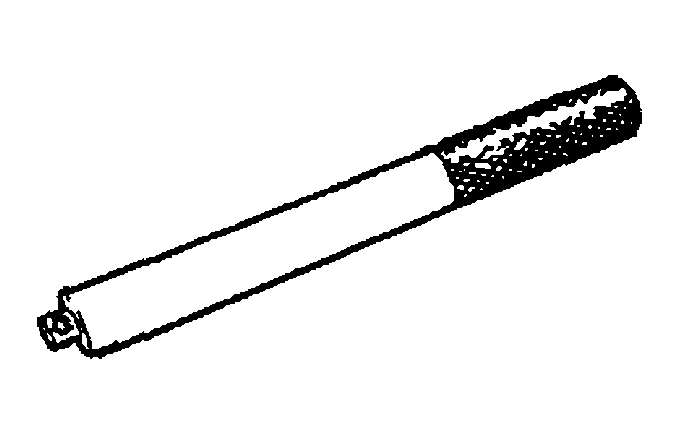

1: 49 F027 003
2:-
Handle
G04326513Courtesy of MAZDA MOTORS CORP.

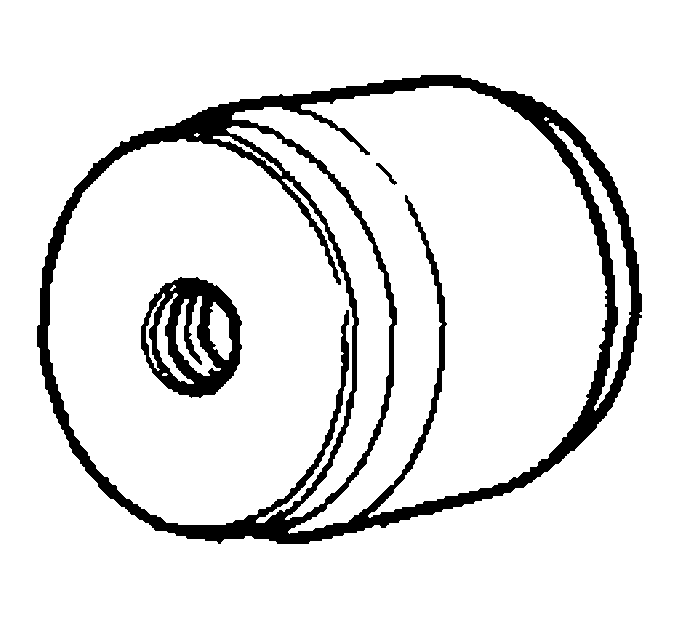

 1:49 W027 001
2:-
Body
G04326514Courtesy of MAZDA MOTORS CORP.

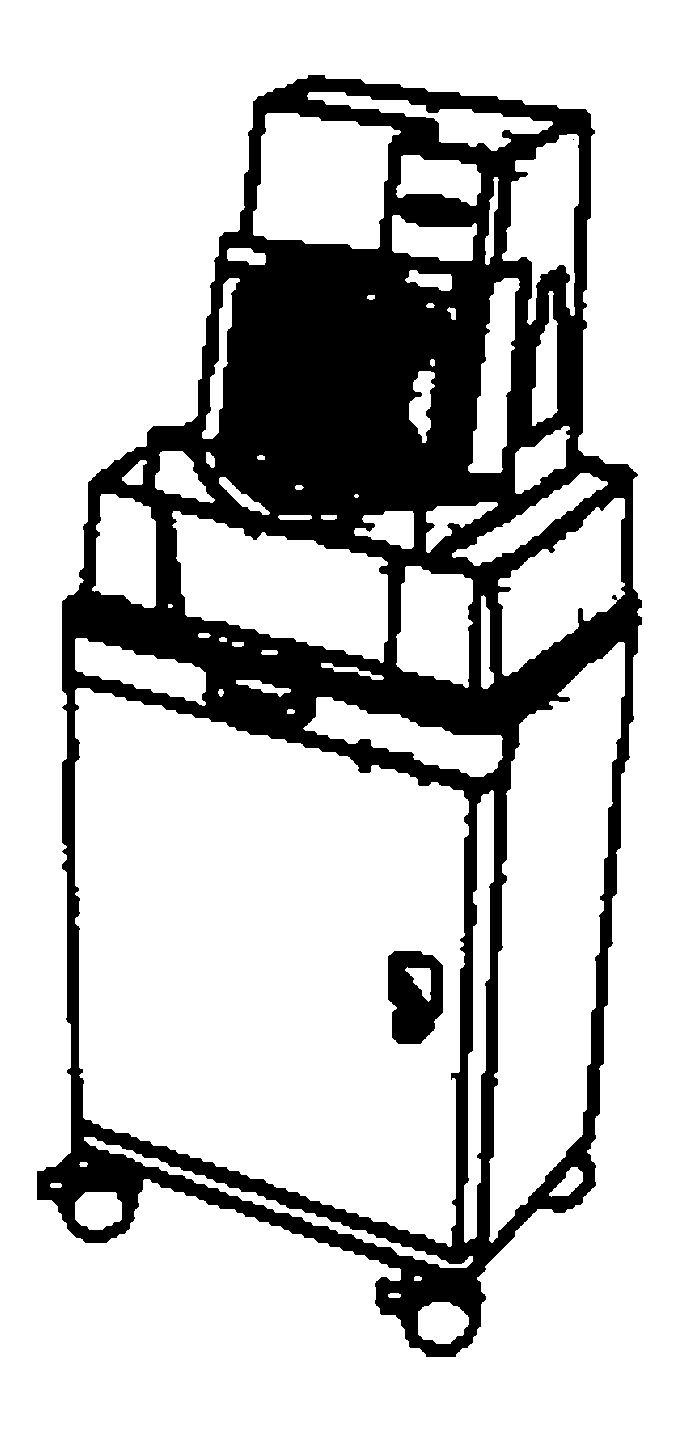

 1:-
2: 418-FS475
WDS
G04326515Courtesy of MAZDA MOTORS CORP.
(1) The SST (49 E017 5A0) can be used in place of the SST (49 C017 5A0).
