2007 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE
Resistance Inspection
NOTE:
- Perform the following inspection only when directed.
- Disconnect the MAF/IAT sensor.

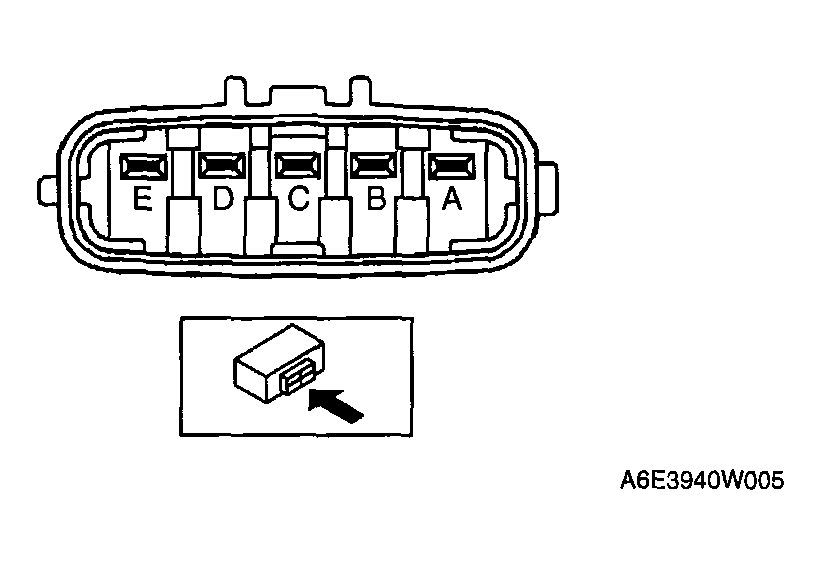

- Measure the resistance between the MAF/IAT sensor terminals D and E using a tester.
- If not as specified, replace the MAF/IAT sensor. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- If the MAF/IAT sensor is normal, but the PID is out of specification, perform the "Circuit Open/Short Inspection".
Specification

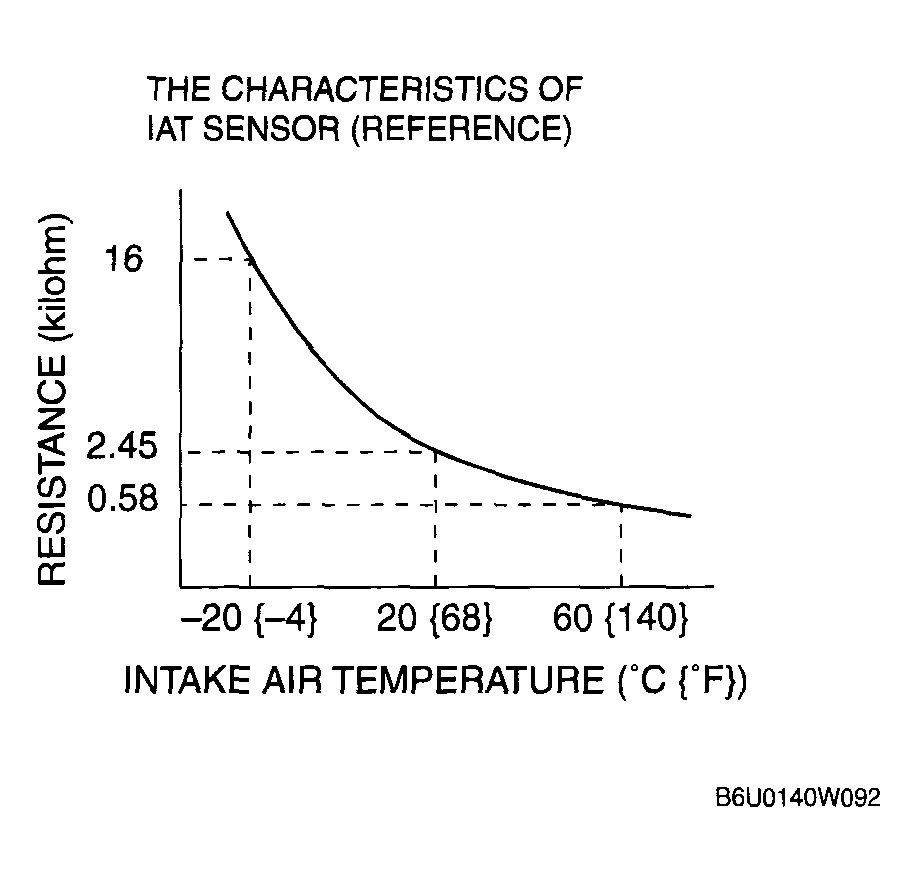

TEMPERATURE AND RESISTANCE CHART
| Ambient temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| -20 {-4} | 13.6-18.4 |
| 20 {68} | 2.21-2.69 |
| 60 {140} | 0.493-0.667 |
