Fuel Injector Signal (+)
Injector driver module terminals
- Fuel injection No.1:1 F(+) - Body ground(-)
- Fuel injection No.2:1 A(+) - Body ground(-)
- Fuel injection No.3:1 A(+) - Body ground(-)
- Fuel injection No.4:1 F(+) - Body ground(-)

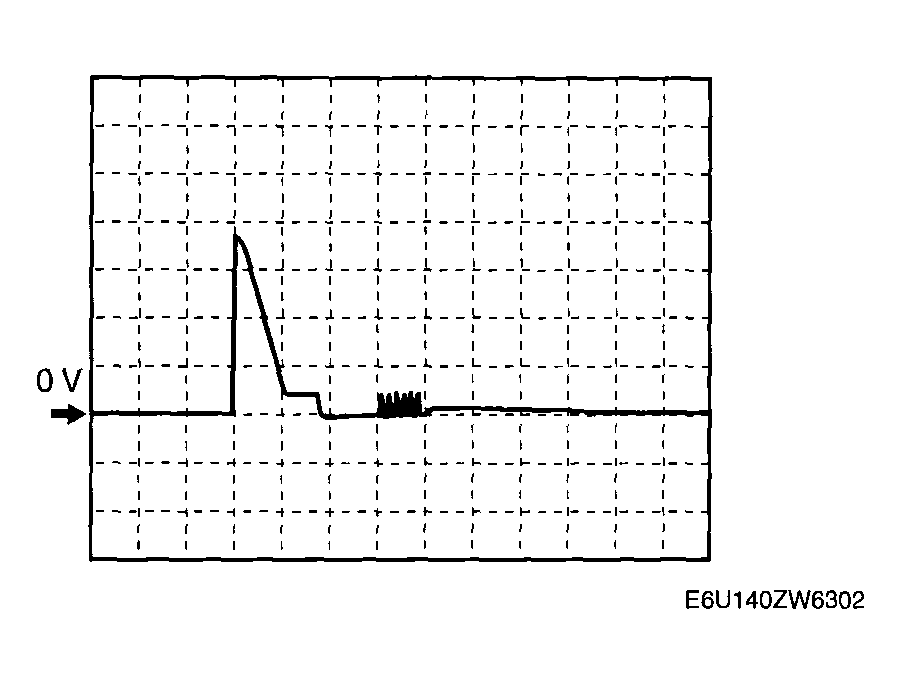

Oscilloscope setting
- 25 V/DIV (Y), 0.2 ms/DIV (X), DC range
Vehicle condition
- Idle after warm up (no load, P/S off, A/C off)
