2007 Mazda 6 MazdaspeedFACTORY OEM SERVICE PROCEDURE
Resistance Inspection
NOTE:
- Perform the following inspection only when directed.
- Disconnect MAP/boost air temperature sensor.

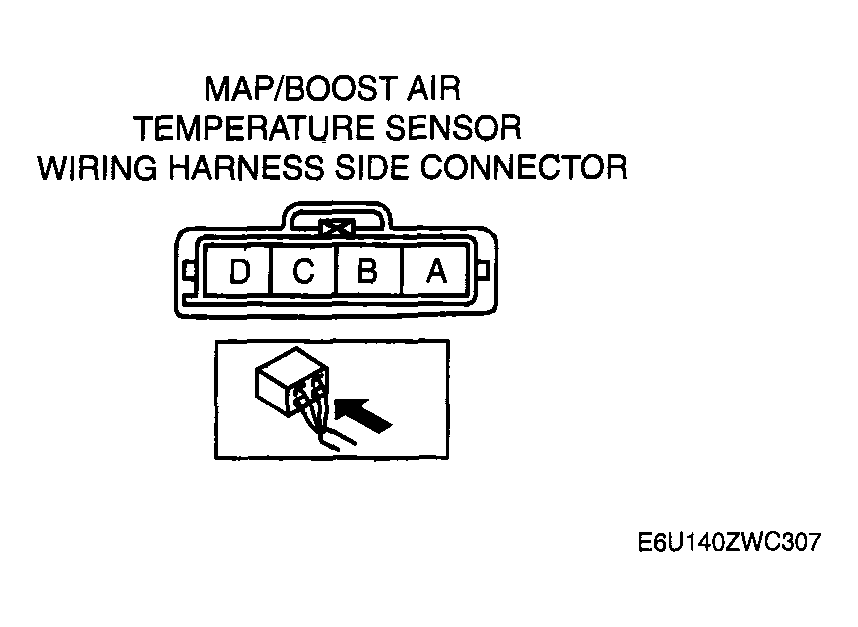

- Measure the resistance between the MAP/boost air temperature sensor terminals A and B using a tester.
- If not as specified, replace the MAP/boost air temperature sensor. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- If the MAP/boost air temperature sensor is normal, but PID are out of specification, perform the "Circuit Open/Short Inspection".
Specification

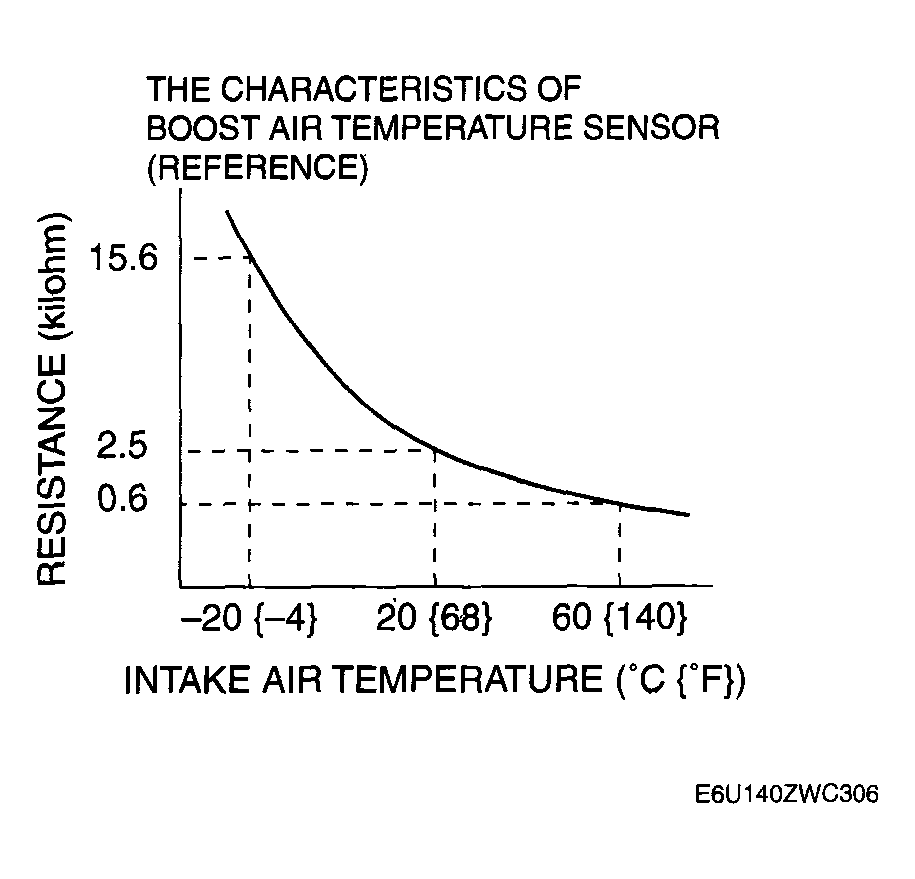

TEMPERATURE AND RESISTANCE CHART
| Ambient temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| -20 {-4} | 14.04-17.33 |
| 20 {68} | 2.31-2.72 |
| 60 {140} | 0.572-0.655 |
