2007 Mazda 5 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Power Window Subswitch
POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION
Passenger's Side
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the cover, then remove the screw.
4. Detach clips B using a tape-wrapped flathead screwdriver.
5. Detach tab A by pulling it in the direction of the arrow, and remove the switch panel from the door trim.
6. Disconnect the power window subswitch connector.

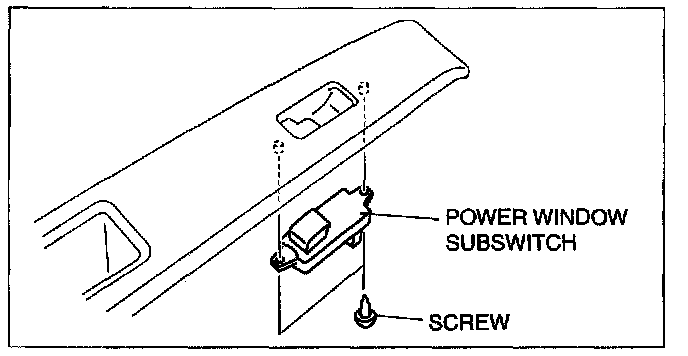

7. Remove the screws, then remove the power window subswitch.
8. Install in the reverse order of removal.
Rear
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the rear side trim.
4. Press the tabs and remove the power window subswitch.
5. Install in the reverse order of removal.
Passenger's Side
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the cover, then remove the screw.
4. Detach clips B using a tape-wrapped flathead screwdriver.
5. Detach tab A by pulling it in the direction of the arrow, and remove the switch panel from the door trim.
6. Disconnect the power window subswitch connector.
7. Remove the screws, then remove the power window subswitch.
8. Install in the reverse order of removal.
Rear
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the rear side trim.
4. Press the tabs and remove the power window subswitch.
5. Install in the reverse order of removal.
