2007 Mazda 5 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Clutch Switch: Testing and Inspection
CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION[L3]
NOTE: Before performing the following inspection, make sure to follow the troubleshooting flowchart. (See FOREWORD[L3].)
Continuity Inspection
1. Remove the CPP switch.

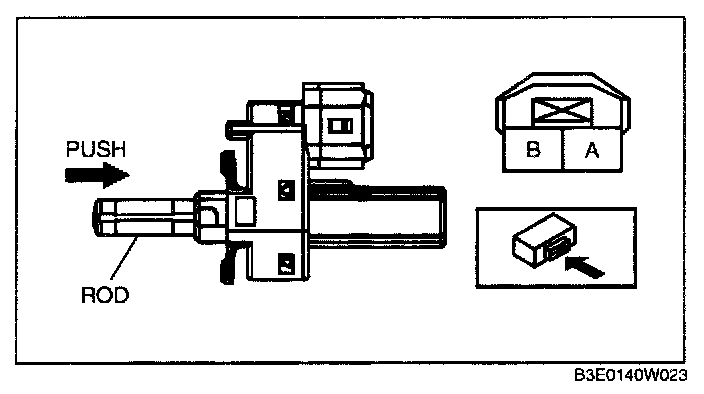

2. Verify that the continuity between CPP switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the "Circuit Open/Short Inspection".
- If there is any malfunction, replace the CPP switch.
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Disconnect the CPP switch connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
Open circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
- CPP switch terminal B and PCM terminal 10
- CPP switch terminal A and body ground
Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- CPP switch terminal A and body ground
- CPP switch terminal A and body ground
- CPP switch terminal B and body ground
NOTE: Before performing the following inspection, make sure to follow the troubleshooting flowchart. (See FOREWORD[L3].)
Continuity Inspection
1. Remove the CPP switch.
2. Verify that the continuity between CPP switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the "Circuit Open/Short Inspection".
- If there is any malfunction, replace the CPP switch.
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Disconnect the CPP switch connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
Open circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.
- CPP switch terminal B and PCM terminal 10
- CPP switch terminal A and body ground
Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- CPP switch terminal A and body ground
- CPP switch terminal A and body ground
- CPP switch terminal B and body ground
