2007 Mazda 3 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Automatic Transaxle
AUTOMATIC TRANSAXLE [FS5A-EL]
Line pressure specification
Engine stall speed
Transaxle range (TR) switch
Transaxle fluid temperature (TFT) sensor
Primary control valve body (ATF temperature: -40-150° C (-40-302° F))
Secondary control valve body (ATF temperature: -40-150° C (-40-302° F))
DRIVE PLATE
Tightening torque 108 - 116 N-m (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft-lbf)
OIL PAN
Tightening torque 6-8 N-m (62-81 kgf-cm, 53-70 in-lbf)
Automatic Transaxle [FS5A-EL]:
Line pressure specification
Line Pressure Specification:
Engine stall speed
Engine Stall Speed:

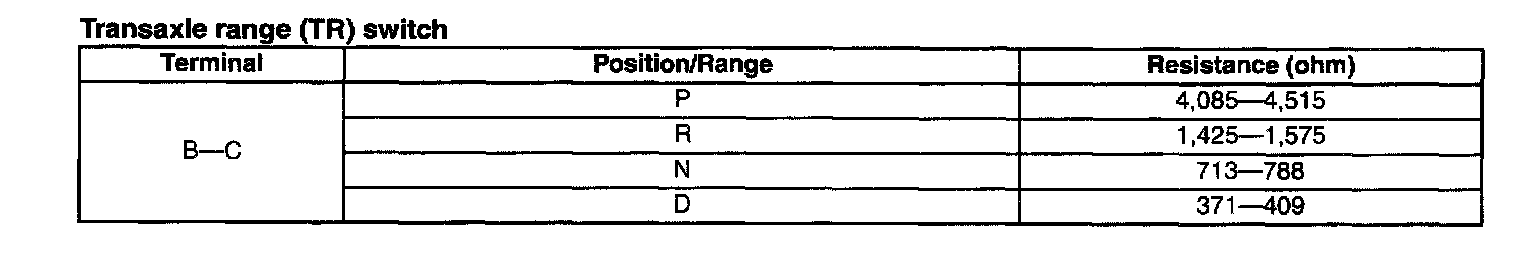

Transaxle range (TR) switch
Transaxle Range (TR) Switch:
Transaxle fluid temperature (TFT) sensor
Transaxle Fluid Temperature (TFT) Sensor:
Primary control valve body (ATF temperature: -40-150° C (-40-302° F))
Primary Control Valve Body:
Secondary control valve body (ATF temperature: -40-150° C (-40-302° F))
Secondary Control Valve Body:
DRIVE PLATE
Tightening torque 108 - 116 N-m (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft-lbf)
OIL PAN
Tightening torque 6-8 N-m (62-81 kgf-cm, 53-70 in-lbf)
