2007 Mazda 3 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Camber Adjustment
Camber and Caster angle Adjustment
1. Remove the shock absorber upper nuts.

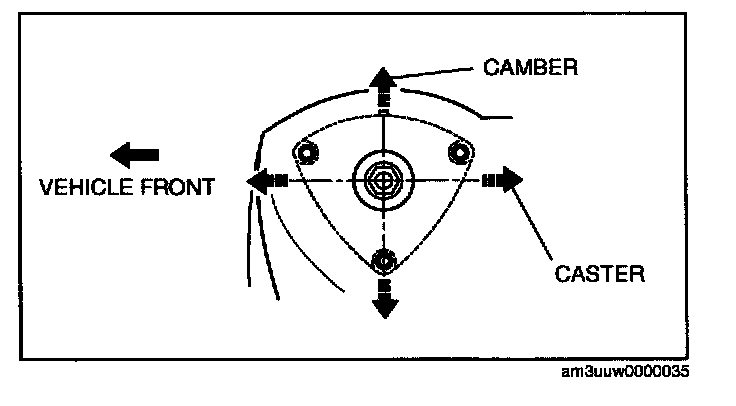

2. Move the shock absorber and coil spring to adjust the camber and caster angle.
Note:
^ Moving the shock absorber and coil spring to the right or left side of the vehicle allows camber adjustment and forward and backward of the vehicle allows caster adjustment.
^ Available camber adjustment range: ± 10'
^ Available caster adjustment range: ± 10'
3. Install the shock absorber upper nuts.
4. Reinspect the alignment to make sure that it is within the specification.
1. Remove the shock absorber upper nuts.
2. Move the shock absorber and coil spring to adjust the camber and caster angle.
Note:
^ Moving the shock absorber and coil spring to the right or left side of the vehicle allows camber adjustment and forward and backward of the vehicle allows caster adjustment.
^ Available camber adjustment range: ± 10'
^ Available caster adjustment range: ± 10'
3. Install the shock absorber upper nuts.
4. Reinspect the alignment to make sure that it is within the specification.
