2007 Mazda 3 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Adjustments
CLIMATE CONTROL UNIT WIRE ADJUSTMENT
Air Mix Wire
1. Set the temperature control dial at middle position (MAX HOT-MAX COLD).
2. Connect the air mix wire to air mix ink.

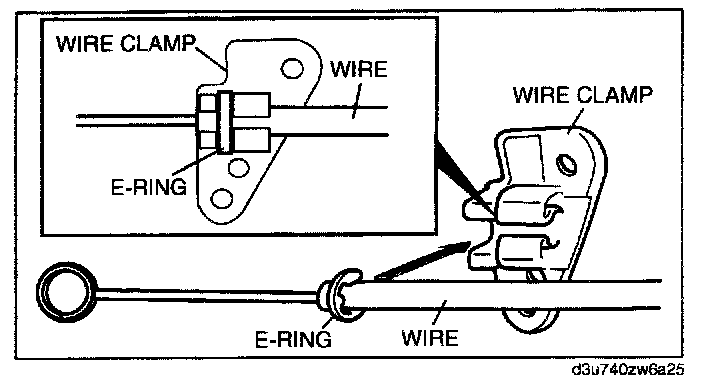

3. Install the air mix wire to the wire clamp as shown in the figure.
4. Remove the screwdriver and verify that the temperature control dial can move its full stroke.
Airflow Mode Wire
1. Set the airflow mode selector dial at defroster.
2. Connect the airflow mode wire to airflow mode link.
3. Install the airflow mode wire to the wire clamp as shown in the figure.
4. Remove the screwdriver and verify that the airflow mode selector dial can move its full stroke.
Air Mix Wire
1. Set the temperature control dial at middle position (MAX HOT-MAX COLD).
2. Connect the air mix wire to air mix ink.
3. Install the air mix wire to the wire clamp as shown in the figure.
4. Remove the screwdriver and verify that the temperature control dial can move its full stroke.
Airflow Mode Wire
1. Set the airflow mode selector dial at defroster.
2. Connect the airflow mode wire to airflow mode link.
3. Install the airflow mode wire to the wire clamp as shown in the figure.
4. Remove the screwdriver and verify that the airflow mode selector dial can move its full stroke.
