2006 Mazda MX-5 Miata BaseFACTORY OEM SERVICE PROCEDURE

DTC P2503: Notes

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P2503)

DTC P2503

Charging system voltage low

DETECTION CONDITION

PCM needs more than 20 A from generator, and judges generator output voltage to be below 8.5 V during engine running.

Diagnostic support note

This is a continuous monitor (Other).
The MIL does not illuminate.
PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

Generator malfunction
PCM and/or generator are poorly connected

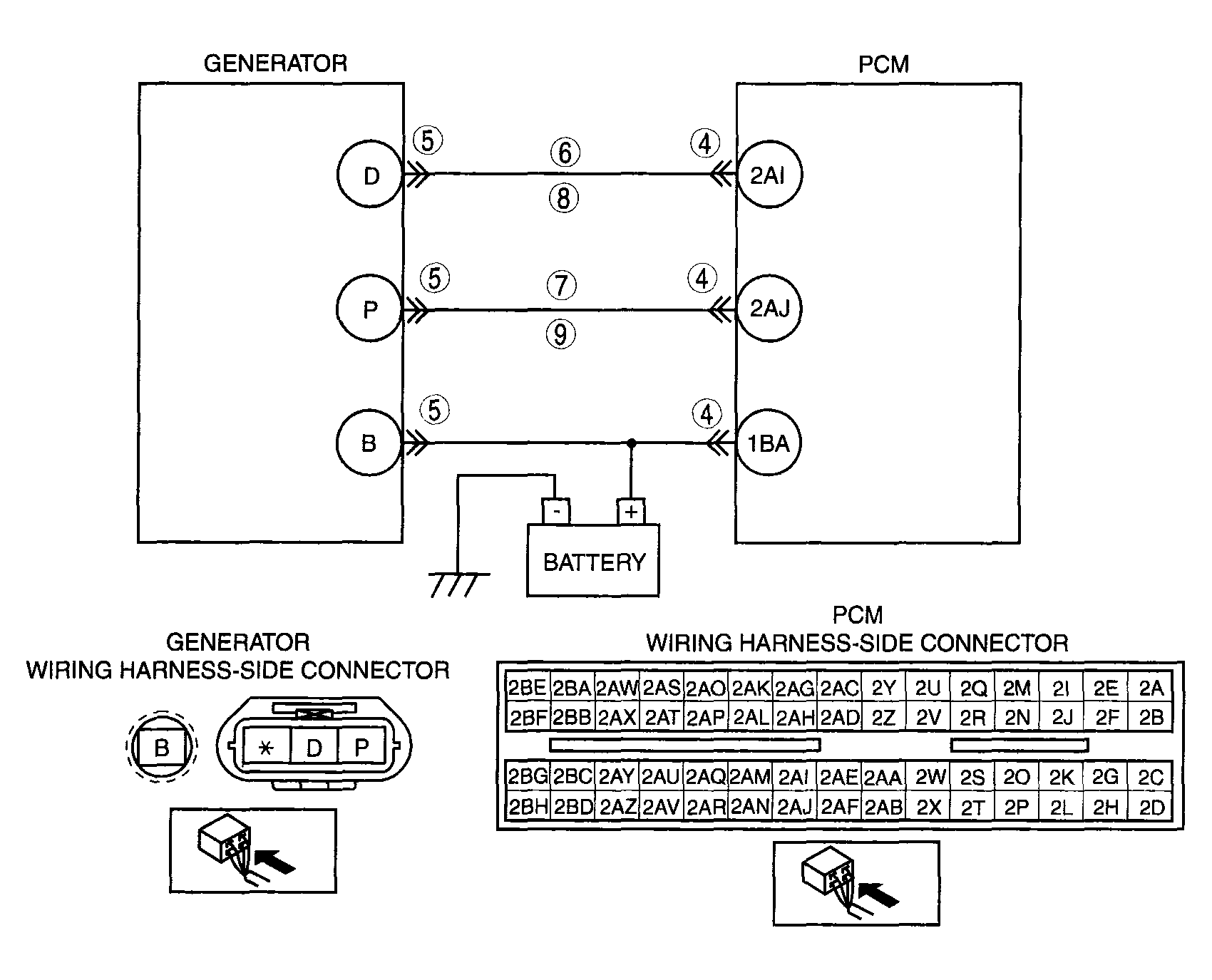

Open and/or short to ground in wiring from between generator terminal P and PCM terminal 2AJ
Open and/or short to ground in wiring from between generator terminal D and PCM terminal 2AI
Drive chain misadjustment
