2006 Mazda MX-5 Miata BaseFACTORY OEM SERVICE PROCEDURE

DTC P2502: Notes

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P2502)

DTC P2502

Charging system voltage problem

DETECTION CONDITION

PCM judges generator output voltage is above 17 V or battery voltage is below 11 V during engine running.

Diagnostic support note

This is a continuous monitor (Other).
The MIL does not illuminate.
PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

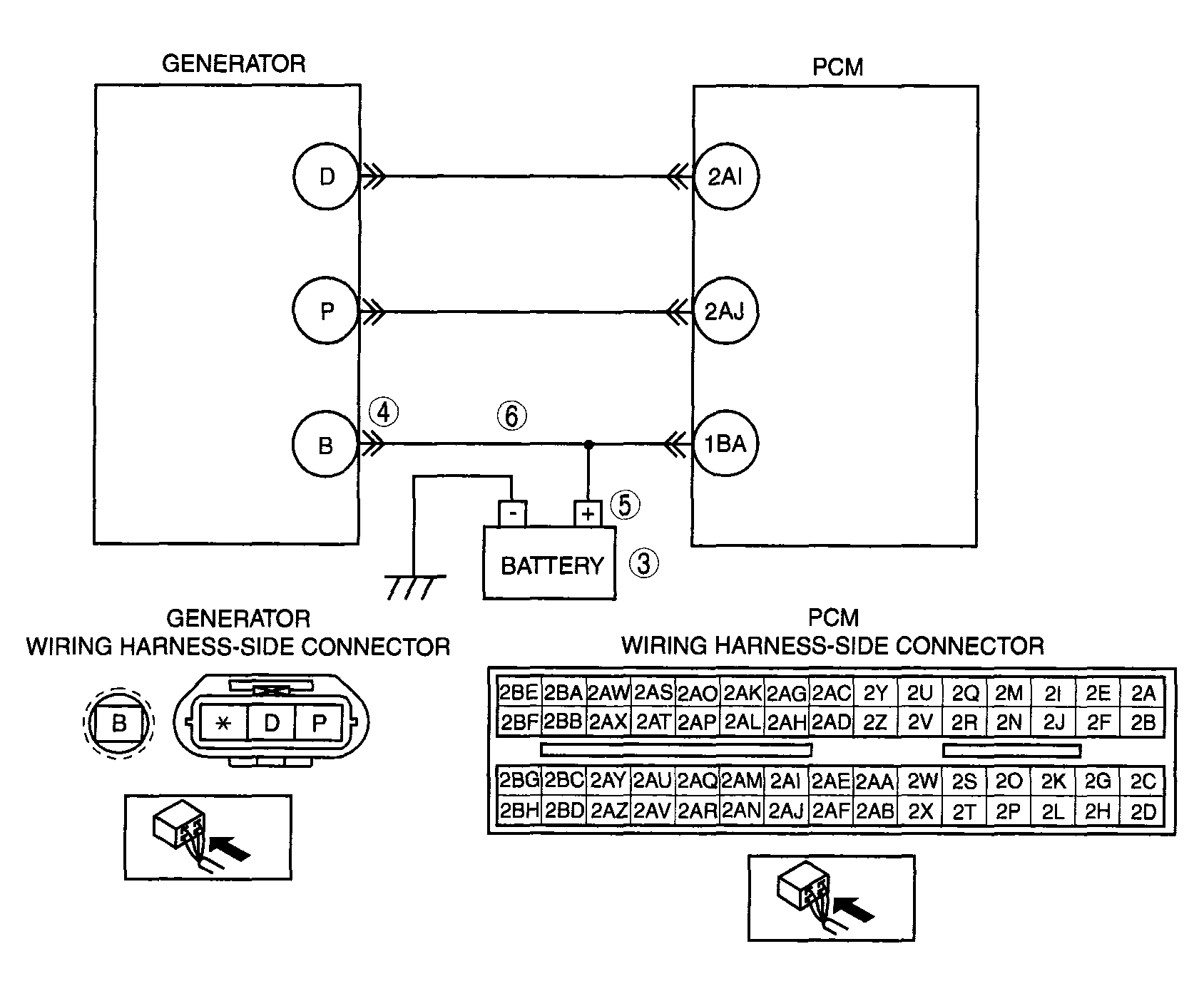

POSSIBLE CAUSE

Open circuit between generator terminal B and battery positive terminal
Battery malfunction Generator malfunction
PCM is poorly connected PCM, generator and/or battery are poorly connected

Courtesy of MAZDA MOTORS CORP.
