DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0704)

DTC P0704

Clutch pedal position (CPP) switch input circuit problem

DETECTION CONDITION

The PCM monitors changes in input voltage from the CPP switch. If the PCM does not detect the voltage changes while the vehicle runs with vehicle speed above 30 km/h {19 mph} and stops 8 times alternately, the PCM determines that the CPP switch circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

CPP switch malfunction
Poor connection of CPP switch connector or PCM connector

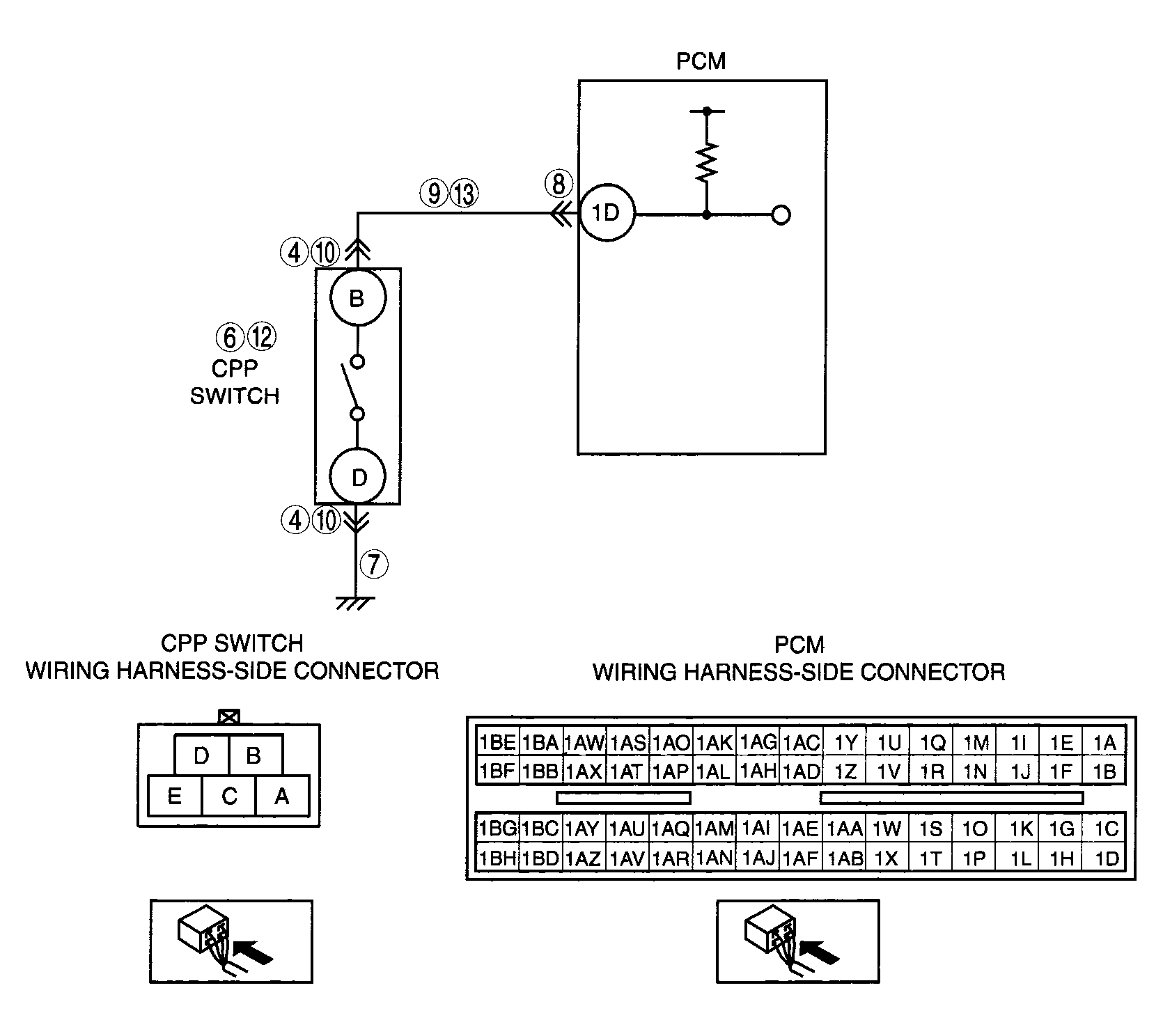

Short to ground in wiring harness between CPP switch terminal B and PCM terminal 1D
Open circuit in wiring harness between CPP switch terminal B and PCM terminal 1D
Open circuit in wiring harness between ground and CPP switch terminal D
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
