2006 Mazda MX-5 Miata BaseFACTORY OEM SERVICE PROCEDURE

DTC P0662: Notes

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0662)

DTC P0662

Variable intake air solenoid valve circuit high input

DETECTION CONDITION

The PCM monitors the variable intake air solenoid valve control signal at PCM terminal. If the PCM turns variable intake air solenoid valve on but voltage at PCM terminal still remains high, the PCM determines that the variable intake air solenoid valve circuit has malfunction.

Diagnostic support note

This is a continuous monitor (Other).
The MIL does not illuminate.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

Variable intake air solenoid valve malfunction

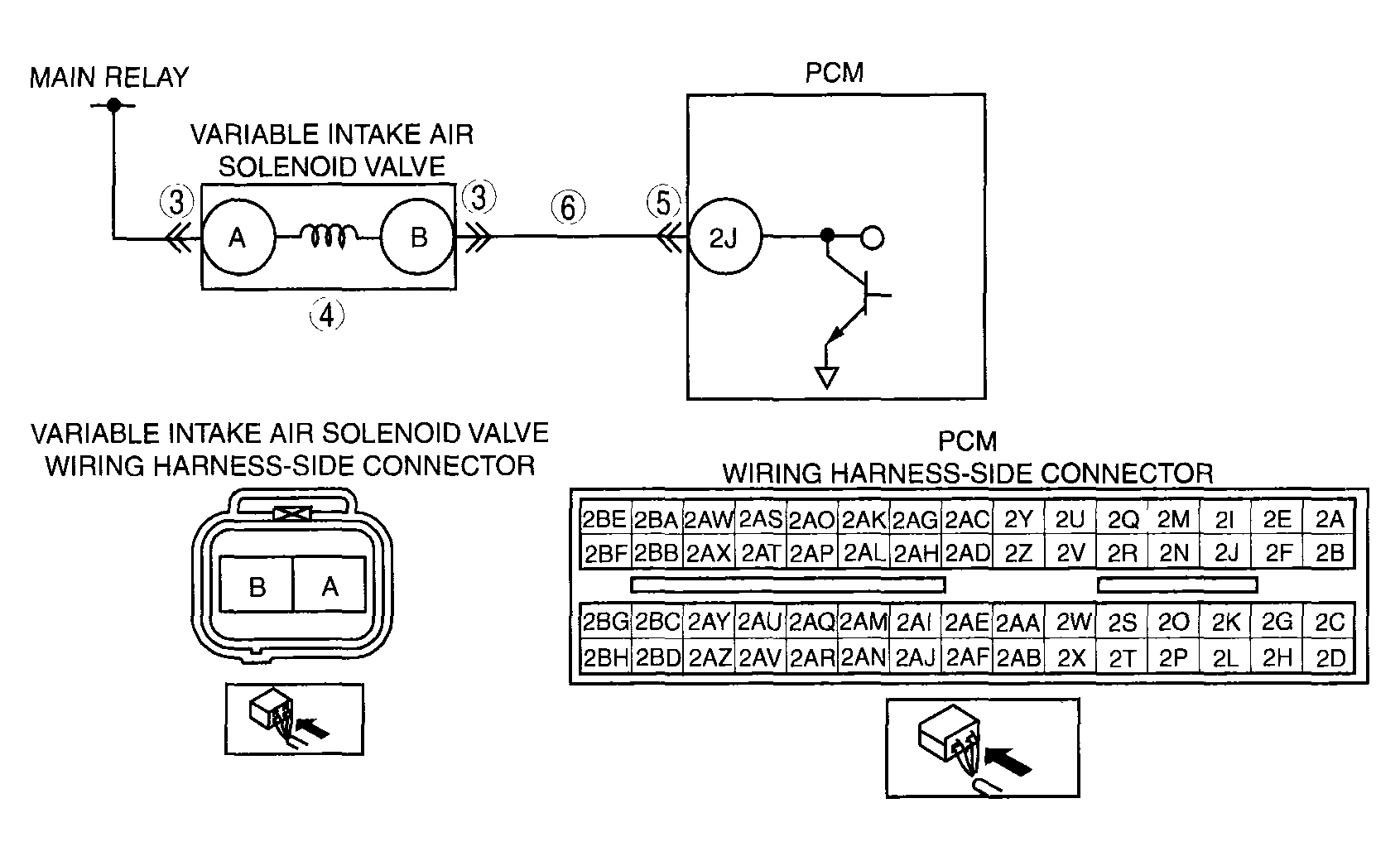

Short to power supply in wiring harness between variable intake air solenoid valve terminal B and PCM terminal 2J
Shorted variable intake air solenoid valve or PCM connector
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
