2006 Mazda MX-5 Miata BaseFACTORY OEM SERVICE PROCEDURE

DTC P0327: Notes

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0327)

DTC P0327

KS circuit low input

DETECTION CONDITION

The PCM monitors input signal from the KS when the engine is running. If the input voltage is below 0.01 V the PCM determines that the KS circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

KS malfunction
Connector or terminal malfunction

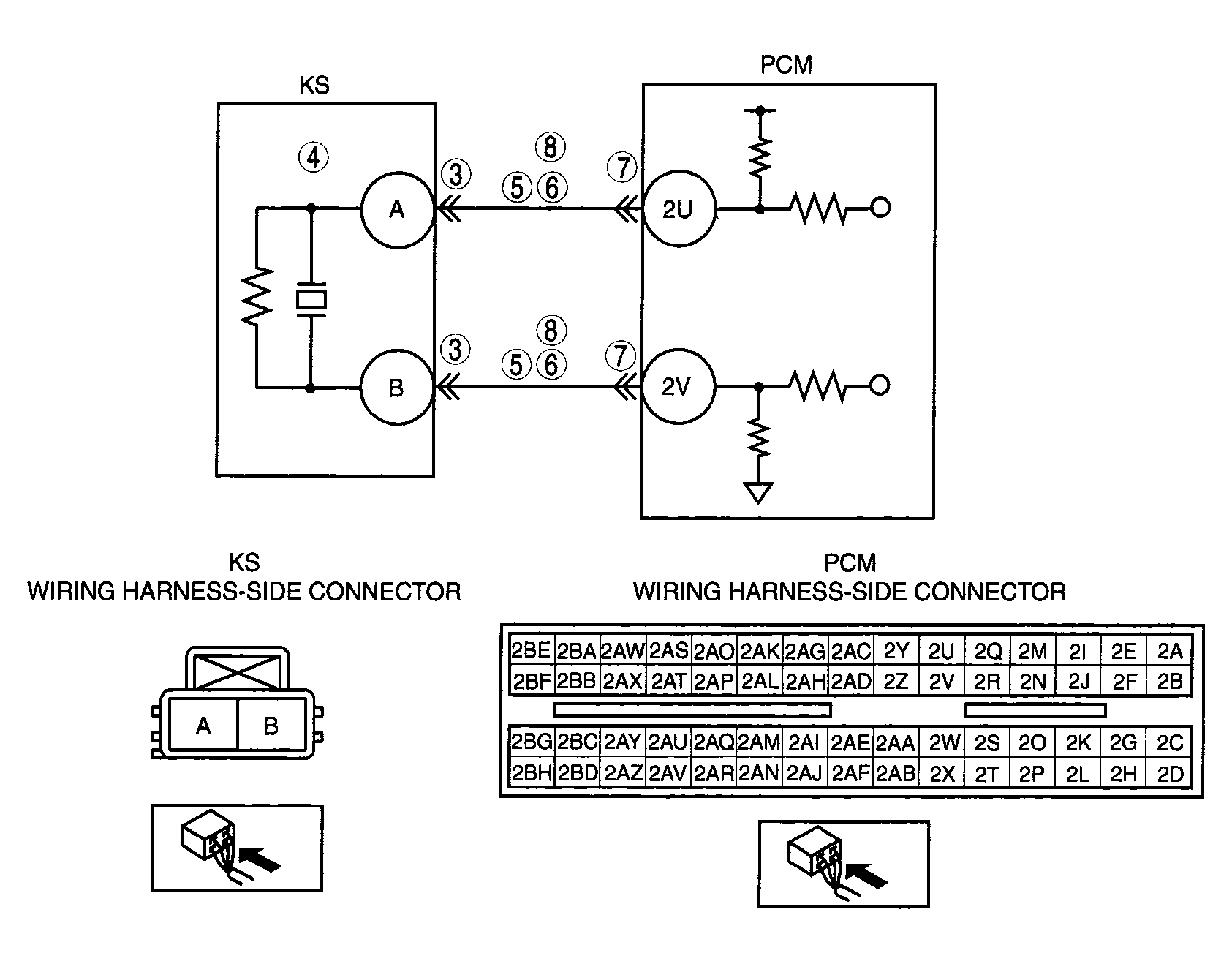

Open circuit or short to ground in wiring harness between KS terminal A and PCM terminal 2U
Open circuit or short to ground in wiring harness between KS terminal B and PCM terminal 2V
Short KS two wires
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
