2006 Mazda MX-5 Miata BaseFACTORY OEM SERVICE PROCEDURE

DTC P0117: Notes

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0117)

DTC P0117

ECT sensor circuit low input

DETECTION CONDITION

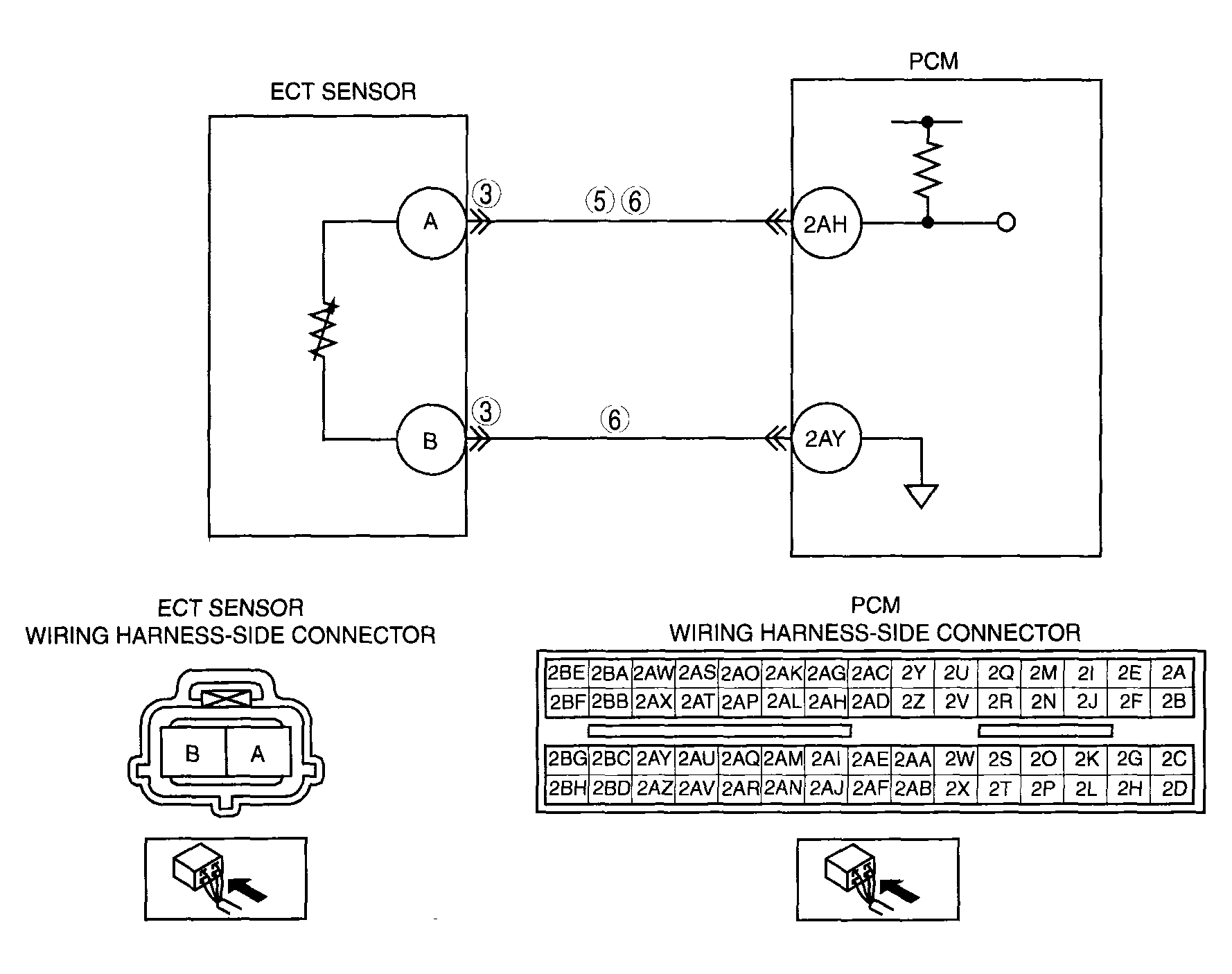

The PCM monitors the ECT sensor signal at PCM terminal 2AH. If the PCM detects the ECT sensor voltage below 0.2 V , the PCM determines that the ECT sensor circuit has malfunction.

Diagnostic support note

This is a continuous monitor (Engine cooling system).
The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

ECT sensor malfunction
Connect or terminal malfunction
Short to ground in wiring harness between ECT sensor terminal A and PCM terminal 2AH
Short each wiring harness ECT sensor signal circuit and ECT sensor ground circuit
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
