2006 Mazda MX-5 Miata BaseFACTORY OEM SERVICE PROCEDURE

DTC P0113: Notes

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0113)

DTC P0113 IAT sensor circuit high input
DETECTION CONDITION
  • The PCM monitors the IAT sensor signal. If the PCM detects that the IAT sensor voltage is above 4.84 V  , the PCM determines that IAT sensor circuit has a malfunction.
Diagnostic support note
  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
  • PENDING CODE is available if the PCM detects the above malfunction condition.
  • FREEZE FRAME DATA is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • IAT sensor malfunction
  • Connector or terminal malfunction

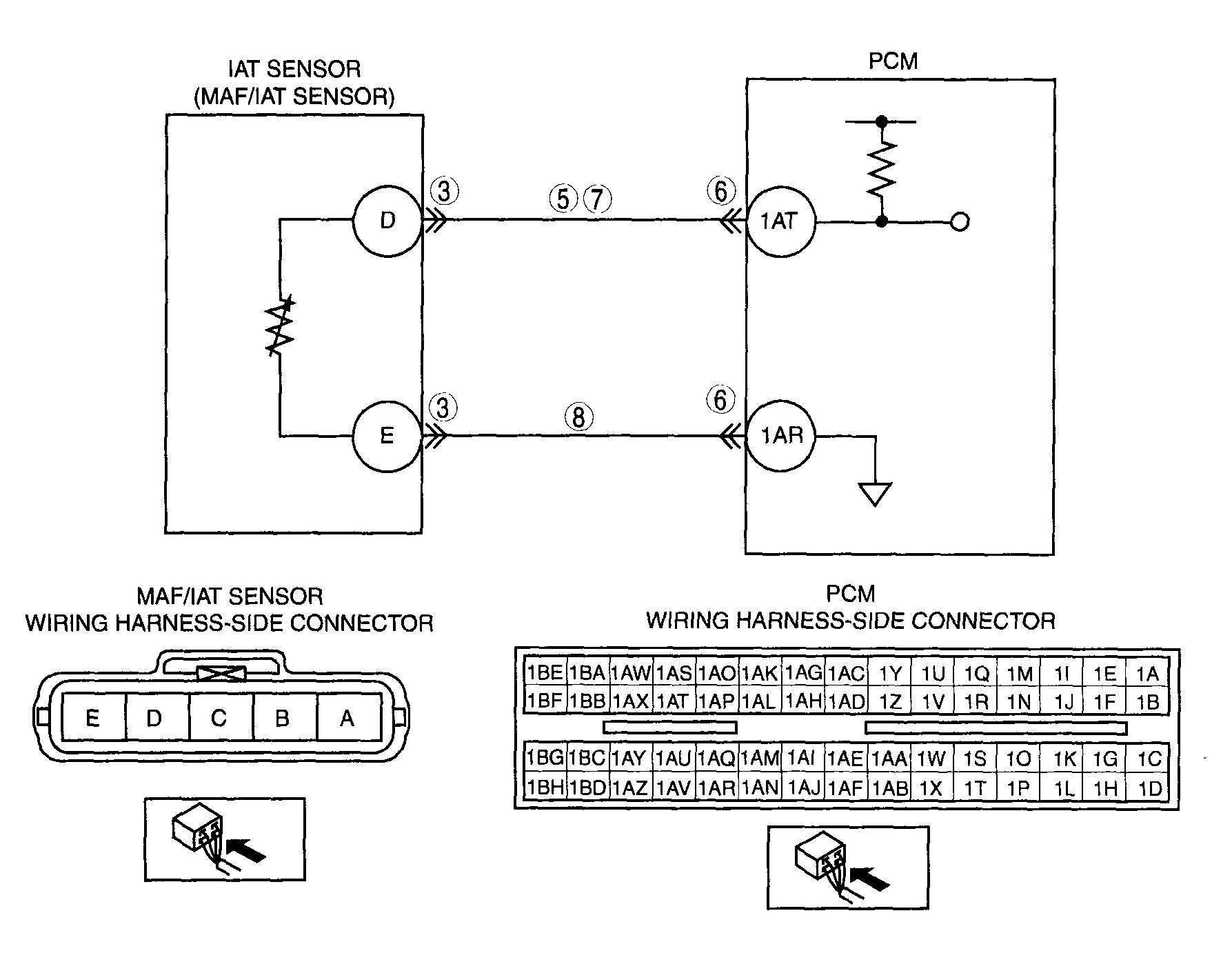

  • Open circuit in wiring harness between MAF/IAT sensor terminal D and PCM terminal 1AT
  • Short to power supply in wiring harness between MAF/IAT sensor terminal D and PCM terminal 1AT
  • Open circuit in wiring harness between MAF/IAT sensor terminal E and PCM terminal 1AR
  • PCM malfunction
G04317703Courtesy of MAZDA MOTORS CORP.
