Manifold Absolute Pressure (Map) Sensor Removal/Installation
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the dynamic chamber. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)

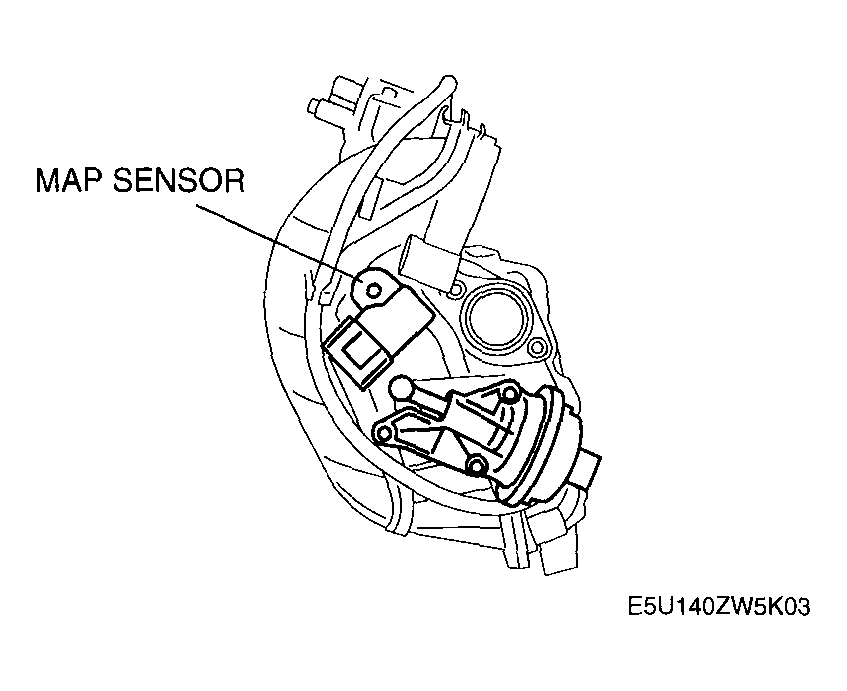

- Remove the MAP sensor.
- Install in the reverse order of removal.
MAP sensor tightening torque
2.7-3.7 N.m {28-37 kgf.cm, 24-32 in.lbf}
