Steering Angle Sensor Inspection
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

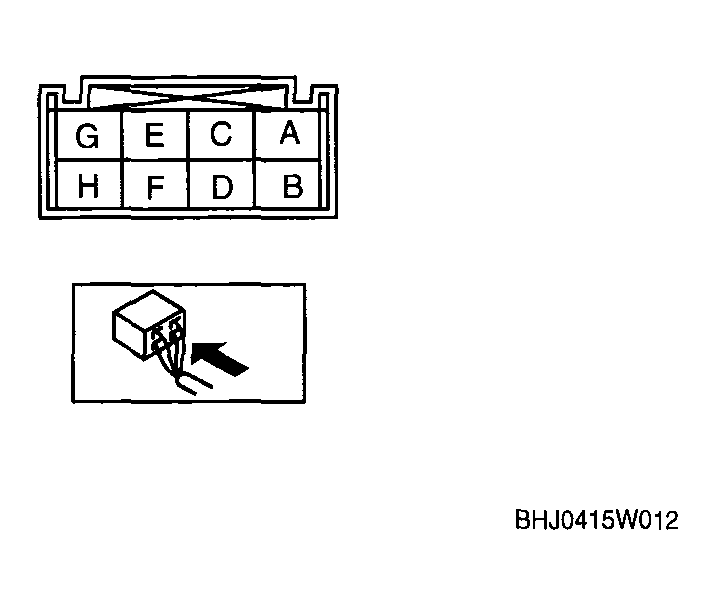

- Measure the voltage between steering angle sensor terminal B and ground.
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal B and battery, then repair or replace if necessary.
Standard voltage
B+
- Turn the ignition switch to the ON position, then measure the voltage between steering angle sensor terminal A and ground.
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal A and ignition switch, then repair or replace if necessary.
Standard voltage
B+
- Measure the voltage between steering angle sensor terminal H and the ground.
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal H and ground point, then repair or replace if necessary.
Standard voltage
0 V
- Turn the ignition switch off.
- Connect the WDS or equivalent to the DLC-2.
- Select the SWA_POS PID.
- Verify the SWA_POS changes when the steering wheel is turned to the left and right.
- If there is any malfunction, replace the steering angle sensor.
Standard
When the steering wheel is turned to the right:
SWA_POS changes positively.
When the steering wheel is turned to the left:
SWA_POS changes negatively.
