2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Front Buckle Removal/Installation

Disconnect the negative battery cable.
Remove the side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
Remove in the order indicated in Fig 1.
Install in the reverse order of removal.

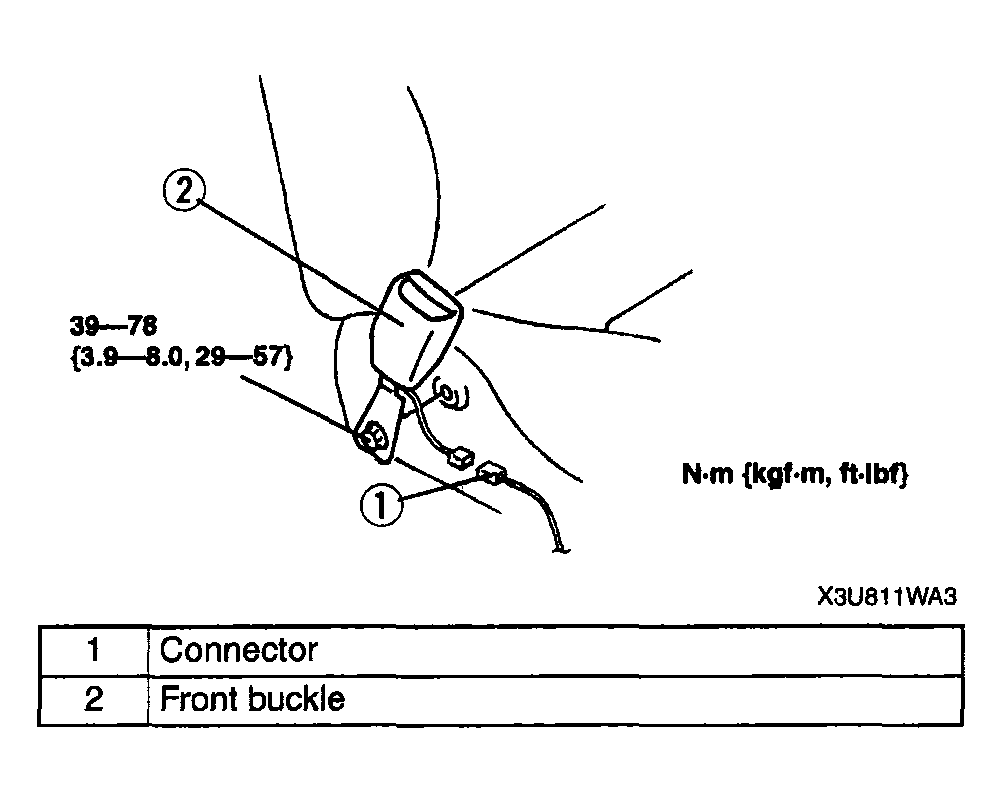

Fig 1: Removing/Installing Front Buckle With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
