2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Ignition Coil Removal/Installation
- Disconnect the negative battery cable.
- LH: Remove the plug hole plate. (See
TIMING CHAIN REMOVAL/INSTALLATION
.)
RH: Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

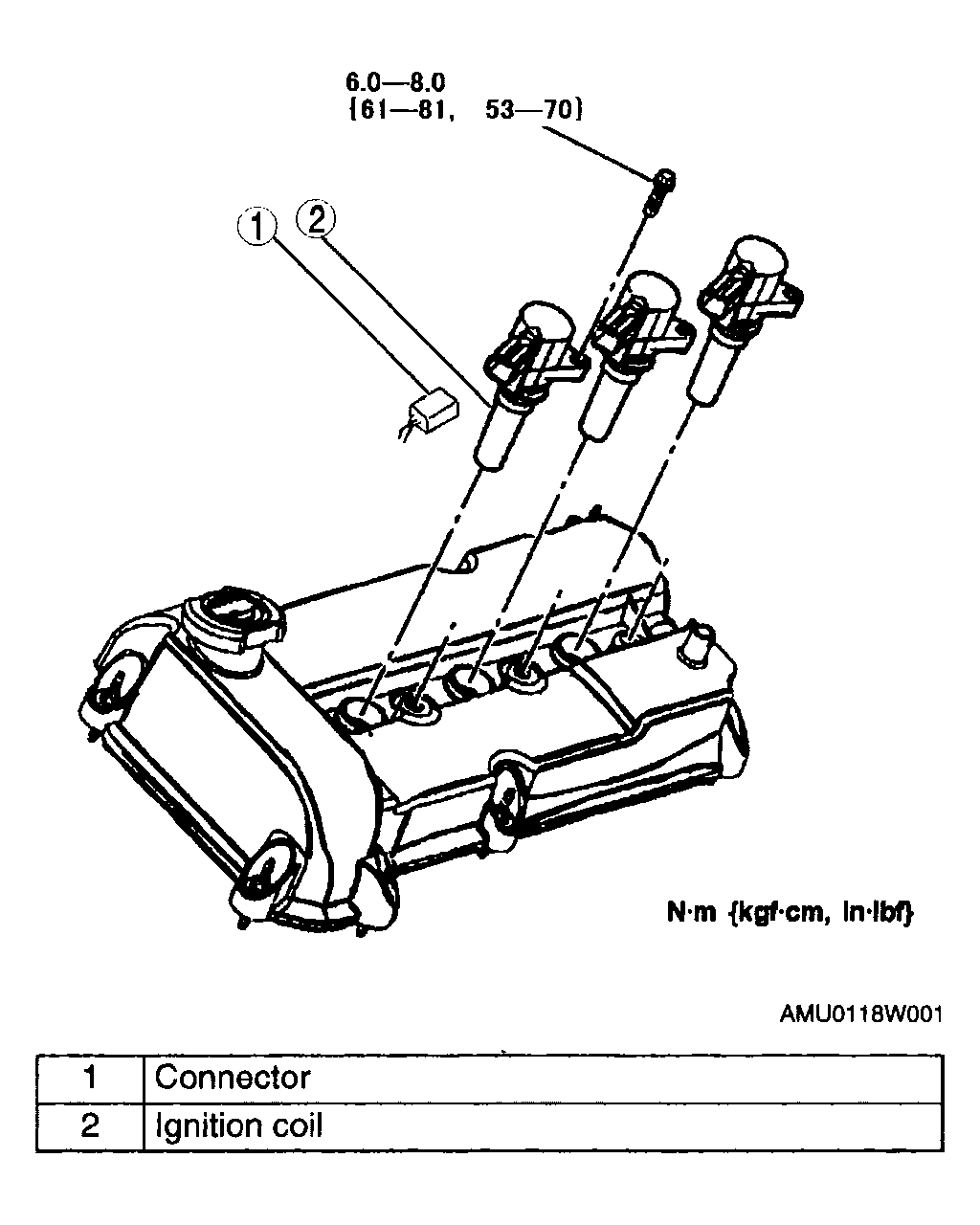

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
- Apply a light film of silicon brake caliper grease and dielectric compound to the interior of the spark plug boot prior to installation.
