2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P2507: Notes

DTC P2507 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2507

PCM +BB (back-up battery) voltage low

DETECTION CONDITION

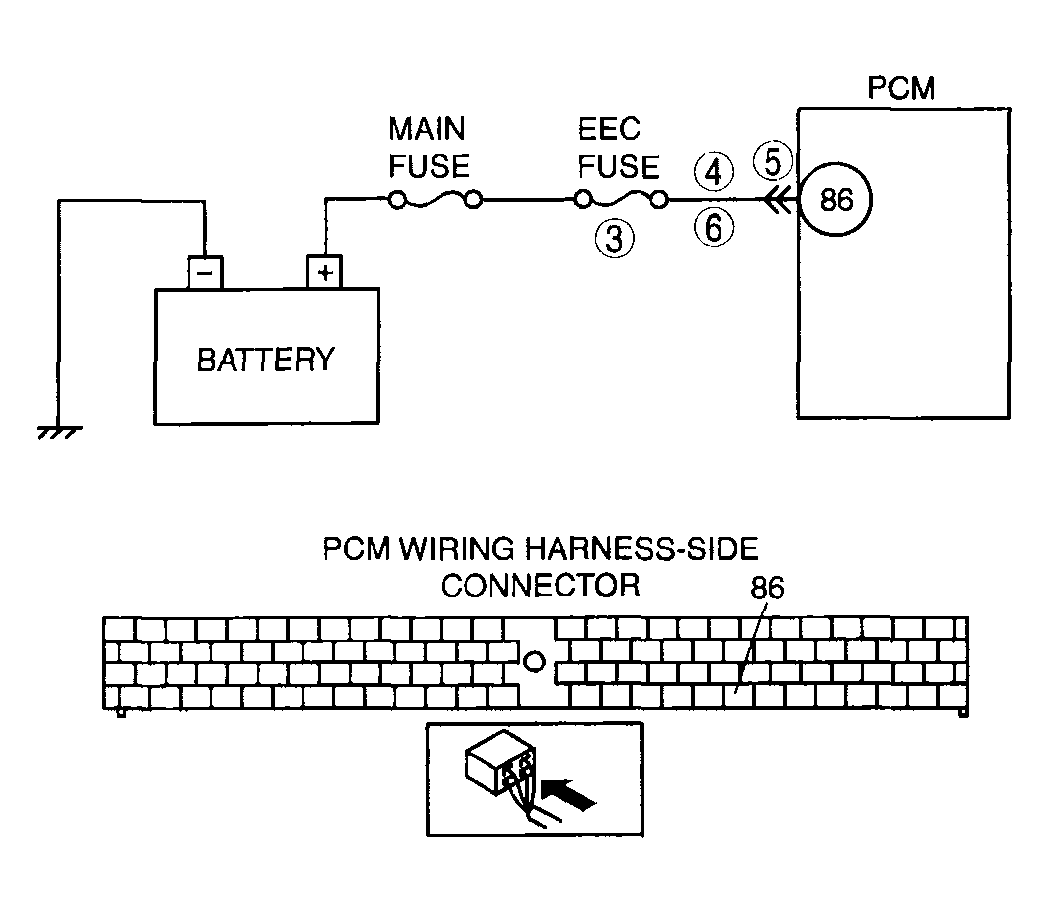

The PCM monitors the voltage of back-up battery positive terminal at PCM terminal 86. If the PCM detects battery positive terminal voltage below 2.5 V for 2 seconds, the PCM determines that the backup voltage circuit has malfunctioned.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
DTC is stored in the PCM memory.

POSSIBLE CAUSE

Melt down of EEC fuse.
Open circuit in wiring between battery positive terminal and PCM terminal 86
Short to ground in wiring between battery positive terminal and PCM terminal 86
Poor connection of PCM connector.
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
