2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P2503: Notes

DTC P2503 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2503

Generator output voltage signal no electricity

DETECTION CONDITION

The PCM needs 20 A or more from the generator, and determines the generator output voltage to be 8.5 V or below when the engine is running.

Diagnostic support note

This is a continuous monitor (other).
The MIL does not illuminate.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is not available.
DTC is stored in PCM memory.

POSSIBLE CAUSE

Generator malfunction
- Rectifier circuit malfunction
- Brush abrasion

Connector or terminal malfunction

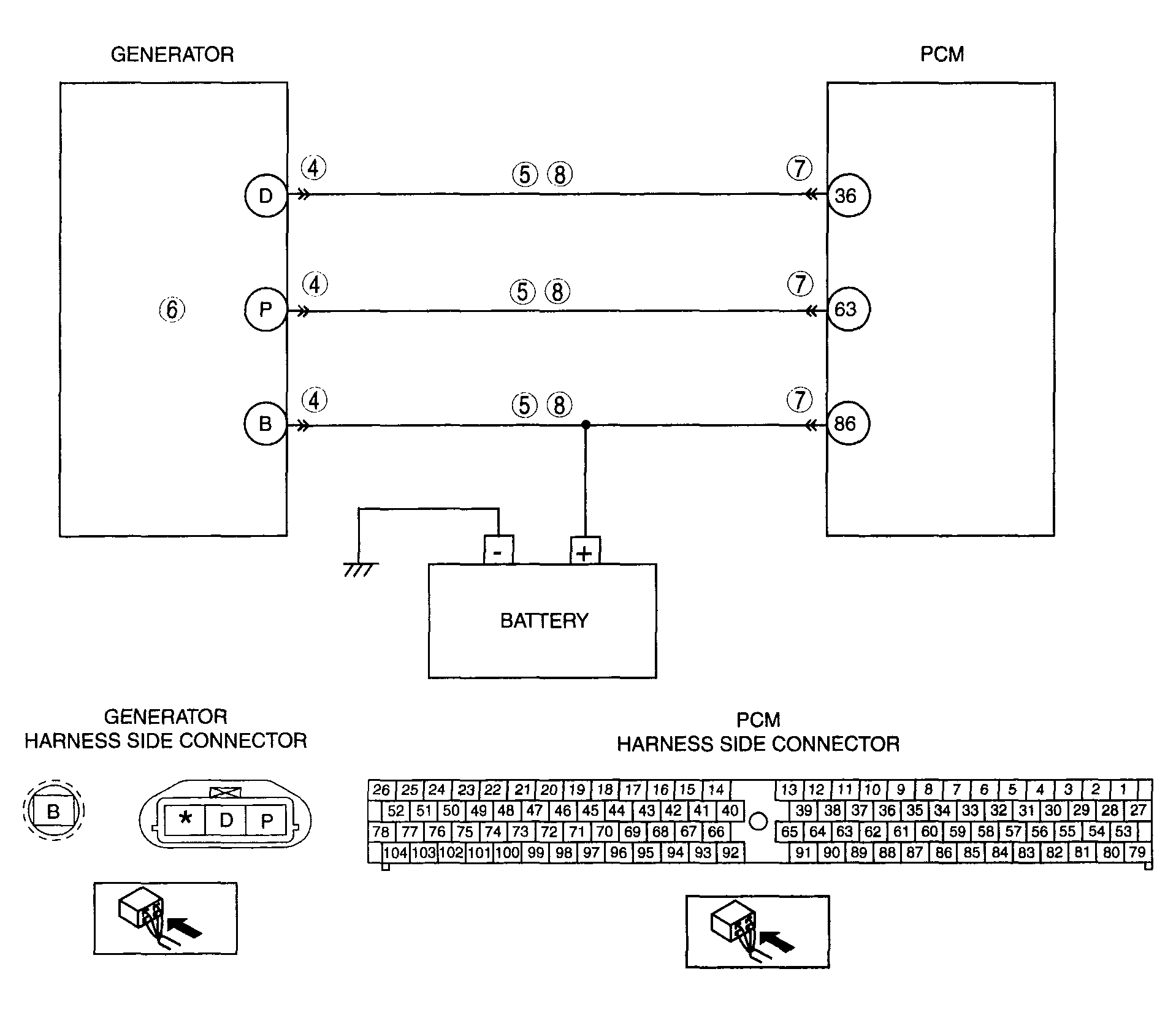

Open or short to GND circuit between generator terminal D and PCM terminal 36
Open or short to GND circuit between generator terminal P and PCM terminal 63
Drive belt cut/damaged or drive belt came off
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
