2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P2228: Notes

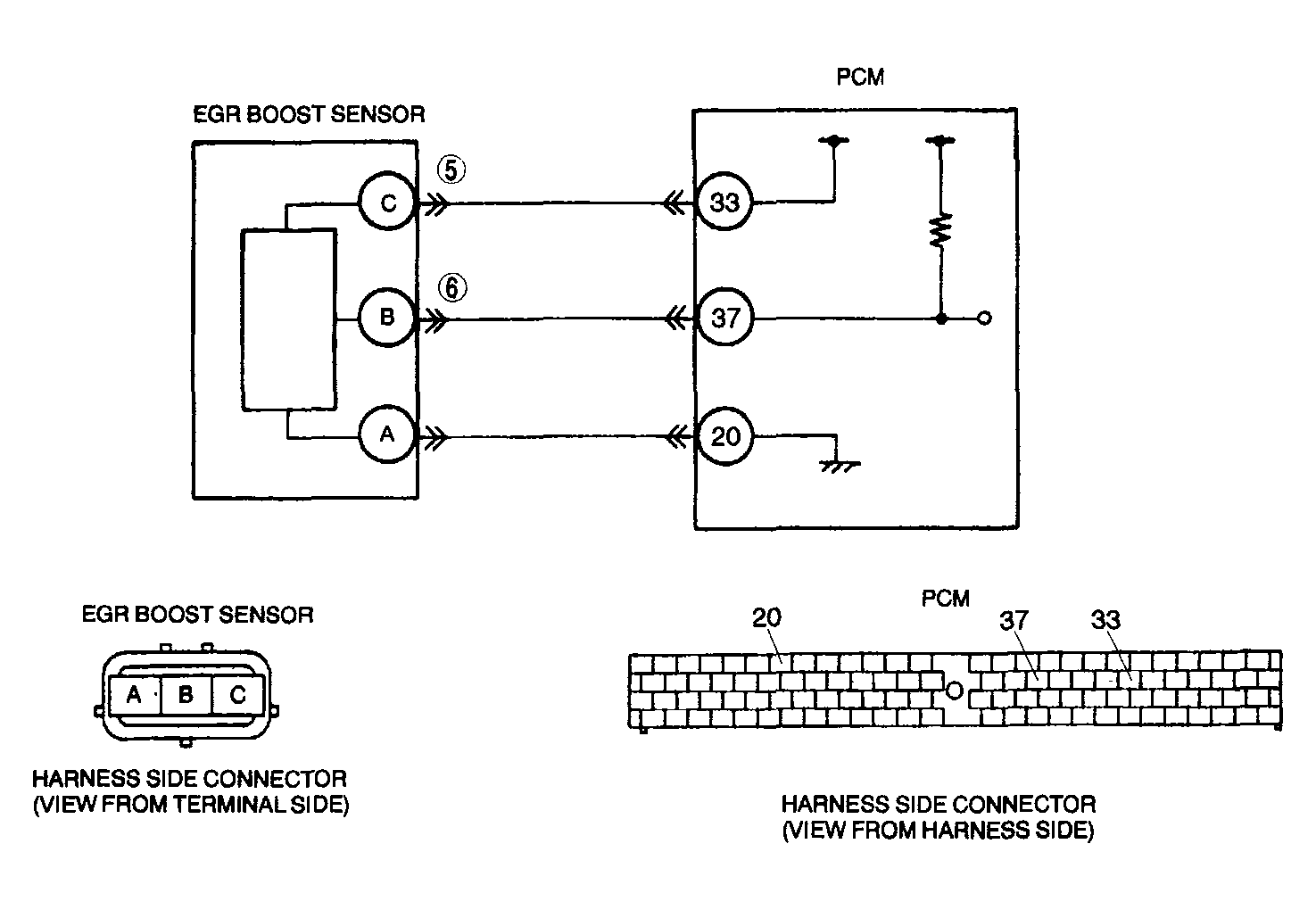

DTC P2228 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2228

EGR boost sensor circuit low input

DETECTION CONDITION

PCM monitors input voltage from EGR boost sensor. If input voltage at the PCM terminal 37 is below 0.2 V, the PCM determines that the EGR boost sensor circuit has malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
DTC is stored in the PCM memory.

POSSIBLE CAUSE

EGR boost sensor malfunction
Connector or terminal malfunction
Short to ground in wiring between EGR boost sensor terminal B and PCM terminal 37
Open circuit in wiring between EGR boost sensor terminal C and PCM terminal 33
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
