2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P1602: Notes

DTC P1602 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P1602 Immobilizer unit-PCM communication error
DETECTION CONDITION
  • Command transmission from the PCM to the immobilizer control module exceeds limit.
  • No response from immobilizer control module.
POSSIBLE CAUSE
  • Immobilizer unit malfunction
  • Coil (immobilizer system) malfunction
  • Key (transponder) malfunction
  • PCM malfunction
  • Open circuit in wiring between immobilizer control module terminal A and PCM terminal 64
  • Open circuit in wiring between immobilizer control module terminal C and body ground
  • Open circuit in wiring between immobilizer control module terminal F and coil terminal A
  • Open circuit in wiring between immobilizer control module terminal D and coil terminal C
  • Short to ground circuit in wiring between immobilizer control module terminal A and PCM terminal 64
  • Short to ground circuit in wiring between immobilizer control module terminal F and coil terminal A
  • Short to ground circuit in wiring between immobilizer control module terminal D and coil terminal C

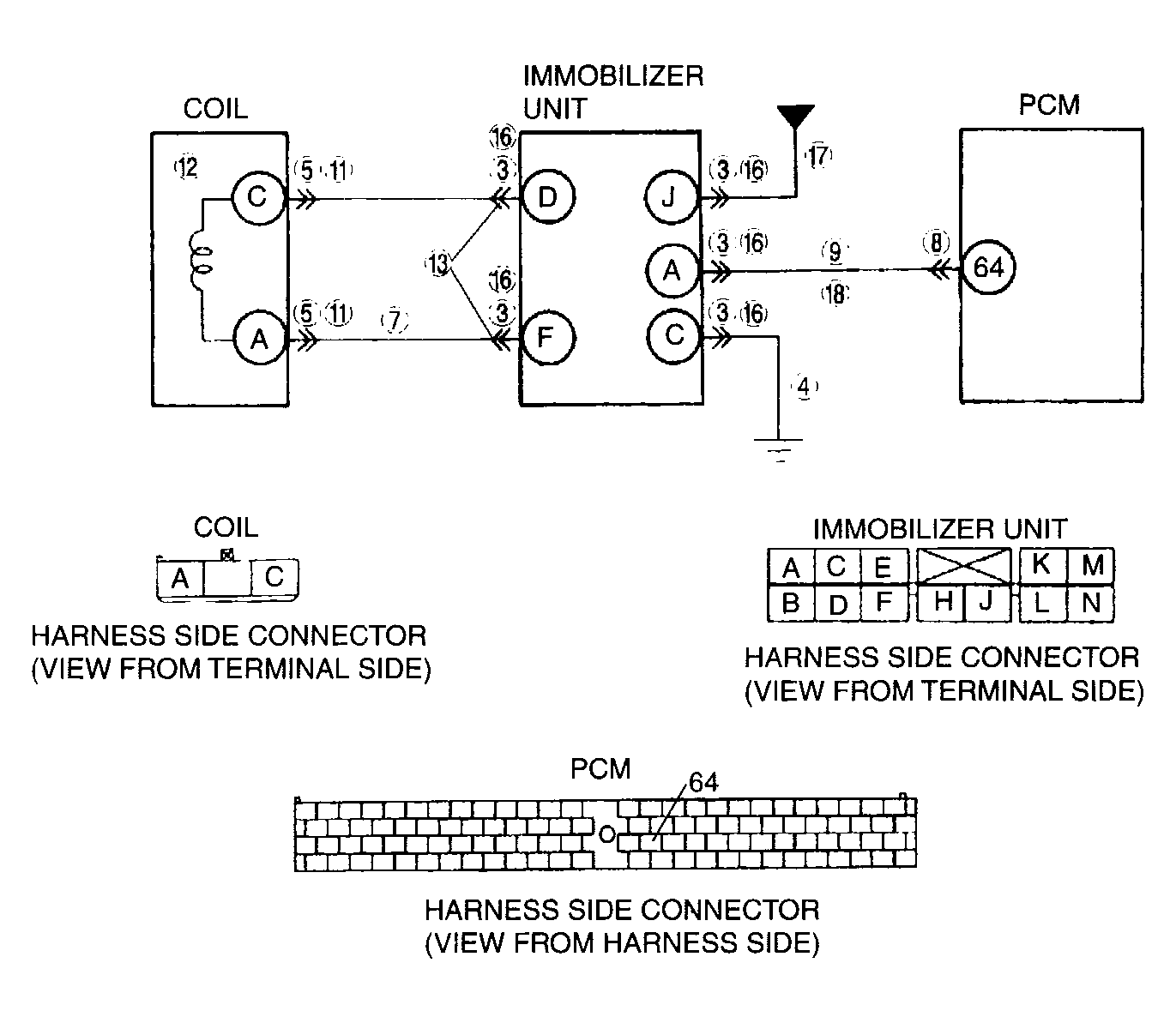

G04327946Courtesy of MAZDA MOTORS CORP.
