2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P0505: Notes

DTC P0505 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0505	IAC system malfunction
DETECTION CONDITION	The PCM cannot control the idle speed toward the target idle speed during the KOER self test.

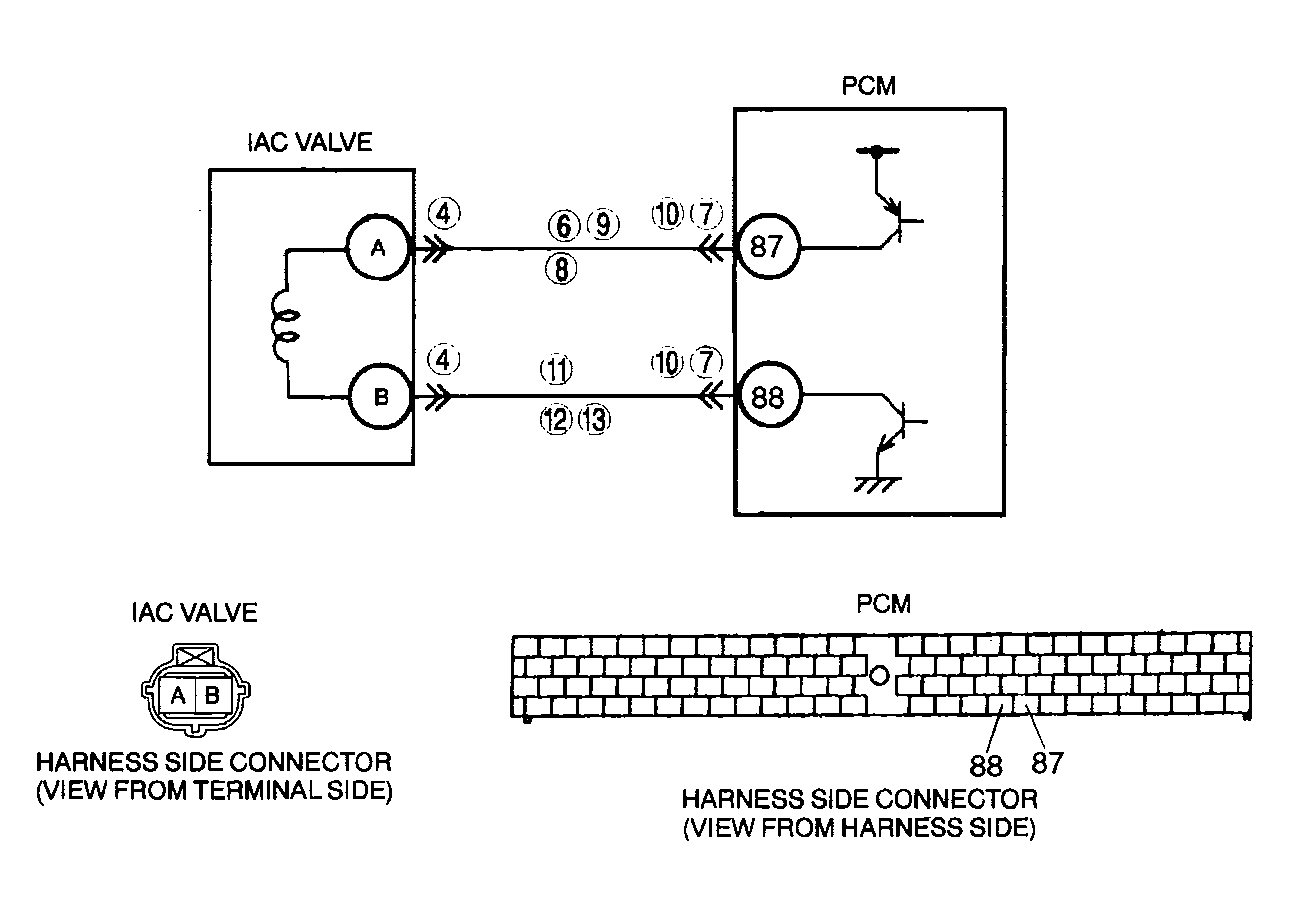

POSSIBLE CAUSE	IAC valve circuit malfunction Short to ground between IAC valve terminal A and PCM terminal 87 Open circuit between IAC valve terminal A and PCM terminal 87 Short to ground between IAC valve terminal B and PCM terminal 88 Short to power between IAC valve terminal B and PCM terminal 88 Open circuit between IAC valve terminal B and PCM terminal 88 Poor connection of IAC valve connector or PCM connector PCM malfunction
Courtesy of MAZDA MOTORS CORP.
