2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P0117: Notes

DTC P0117 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0117

ECT circuit low input

DETECTION CONDITION

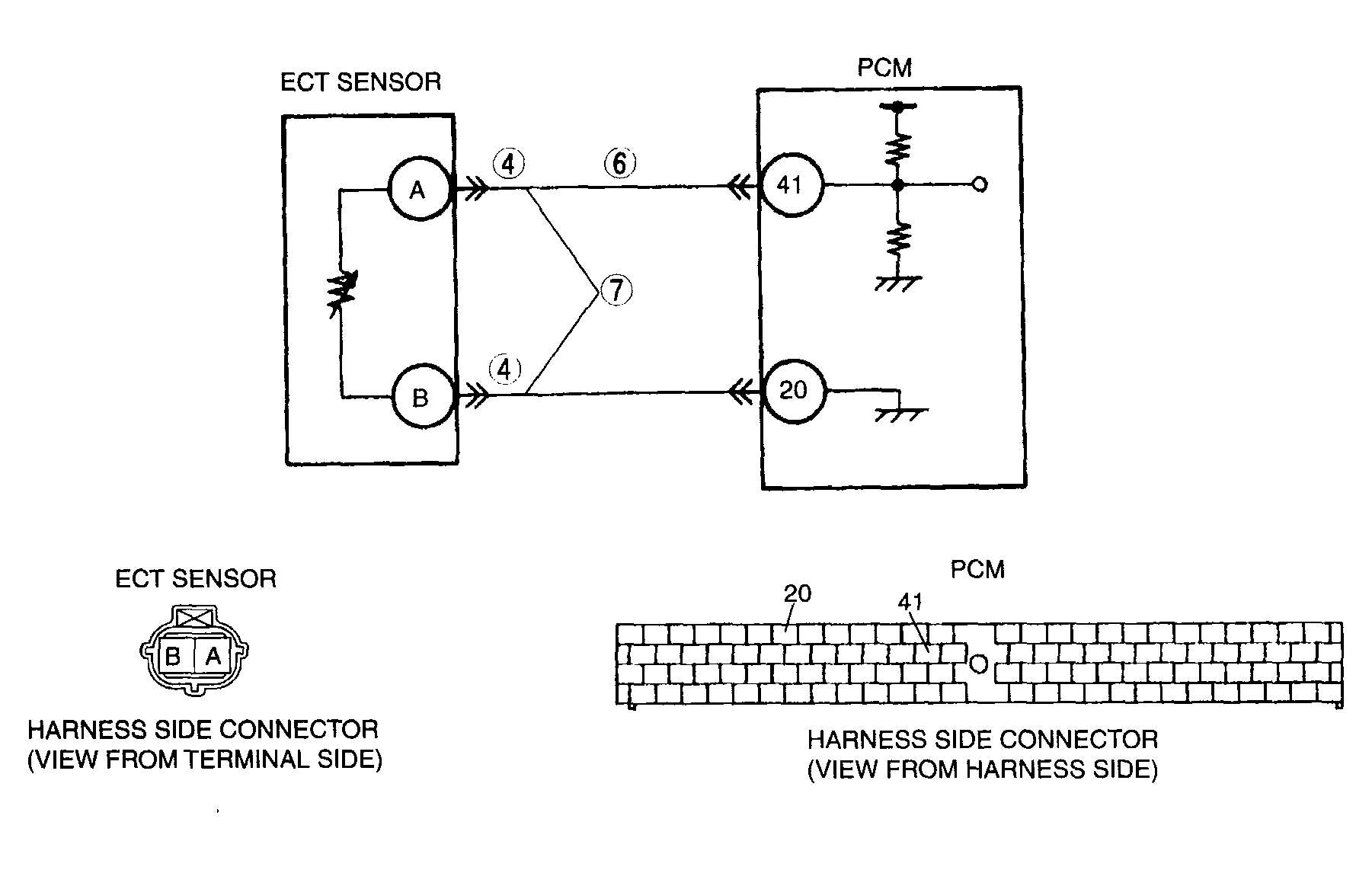

The PCM monitors ECT sensor signal at PCM terminal 41. If the PCM detected ECT sensor voltage below 0.18 V the PCM determines that the ECT sensor circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (Engine cooling system).
The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
DTC is stored in the PCM memory.

POSSIBLE CAUSE

ECT sensor malfunction
Connector or terminal malfunction
Short to ground circuit between ECT sensor terminal A and PCM connector terminal 41.
Short each harness ECT signal circuit and ECT ground circuit.
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
