2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

DTC P0102: Notes

DTC P0102 [AJ] DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0102

MAF circuit low input

DETECTION CONDITION

PCM monitors input voltage from MAF sensor when engine is running. If input voltage at PCM terminal 11 is below 0.24 V , PCM determines that MAF circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
PENDING CODE is available if the PCM detects the above malfunction condition.
FREEZE FRAME DATA is available.
DTC is stored in the PCM memory.

POSSIBLE CAUSE

MAF sensor malfunction
Connector or terminal malfunction

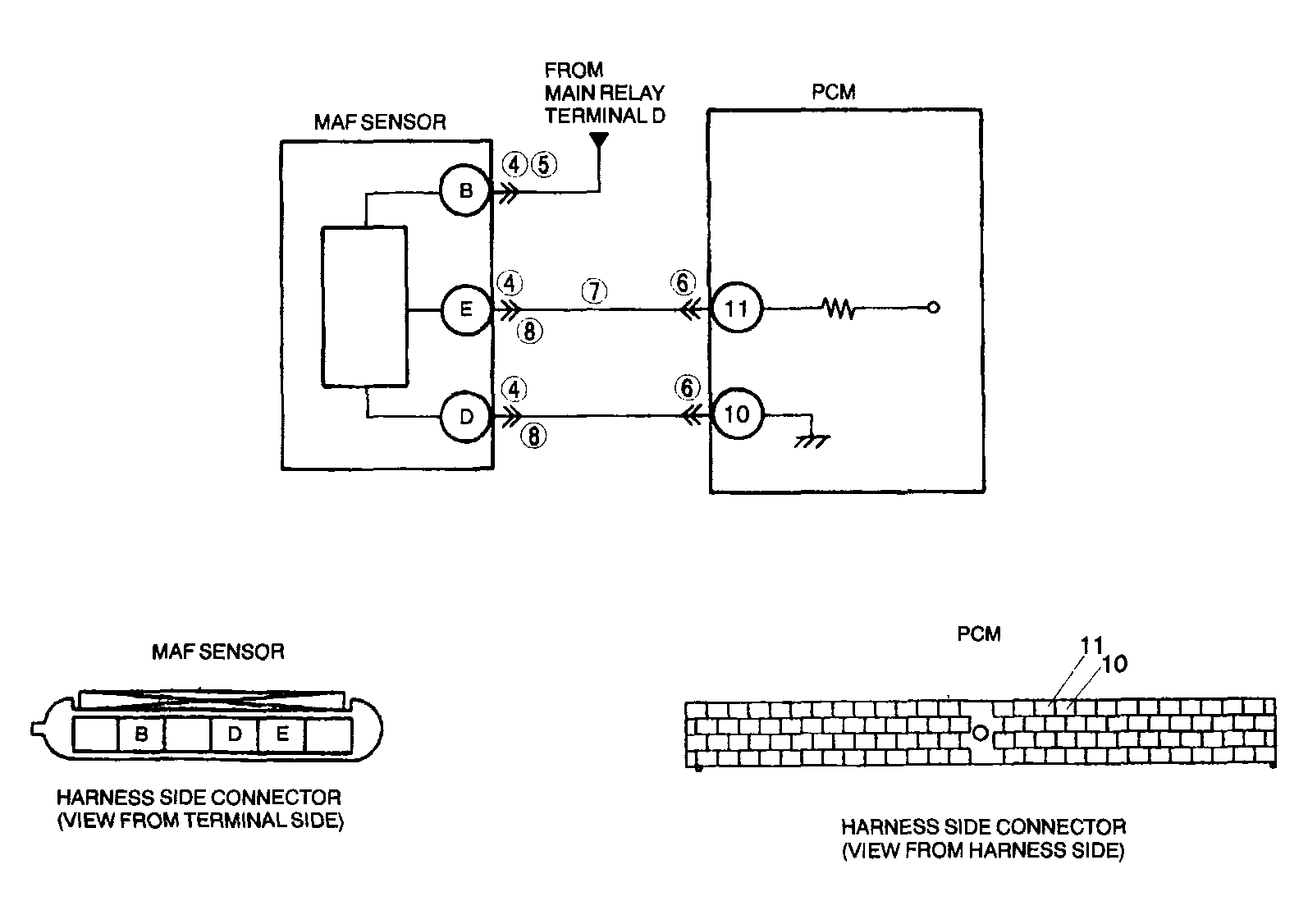

Short to ground in wiring between MAF/IAT sensor terminal E and PCM terminal 11
Open circuit in wiring between MAF/IAT sensor terminal E and PCM terminal 11
Open circuit in wiring between main relay and MAF/IAT sensor terminal B
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
