2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
IGT signal
- PCM terminal
- IGT1 52 (+)-100 (-)
- IGT2 104 (+)-100 (-)
- IGT3 102 (+)-100 (-)
- IGT4 78 (+)-100 (-)
- IGT5 103 (+)-100 (-)
- IGT6 101 (+)-100 (-)

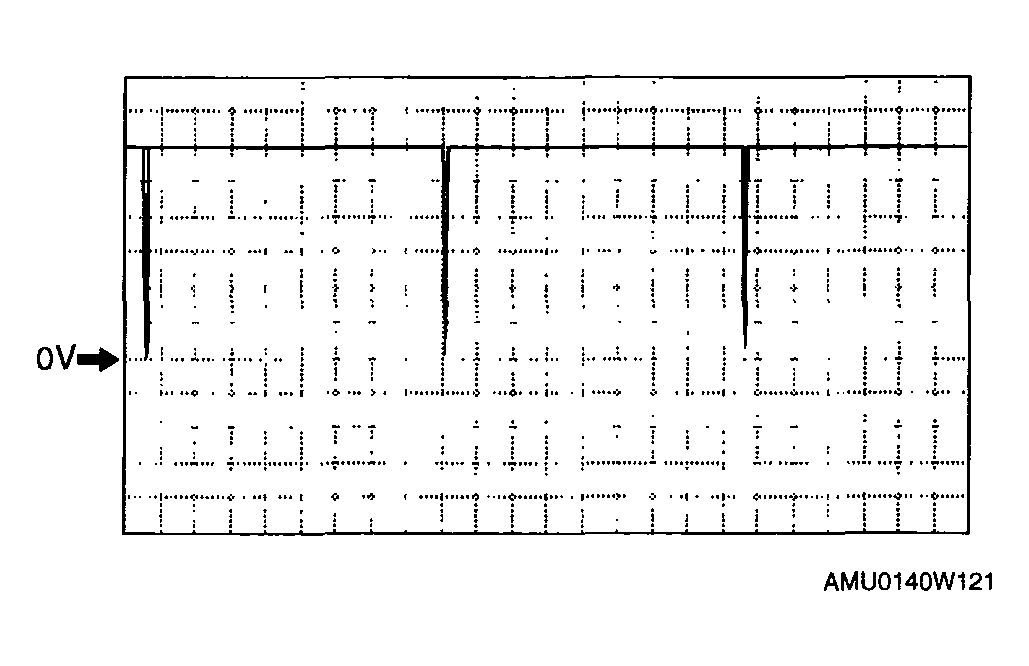

- Oscilloscope setting: 2V/DIV (Y), 10ms/DIV (X), DC range
- Vehicle condition: idle after warm up
