2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Abs HU/Cm Removal/Installation: Notes
CAUTION:
- Do not drop the ABS HU/CM. Replace it if it is subjected to an impact.
- Remove the battery.
- Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
- Remove the air filter. (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION [AJ] .)
- Remove the splash shield.

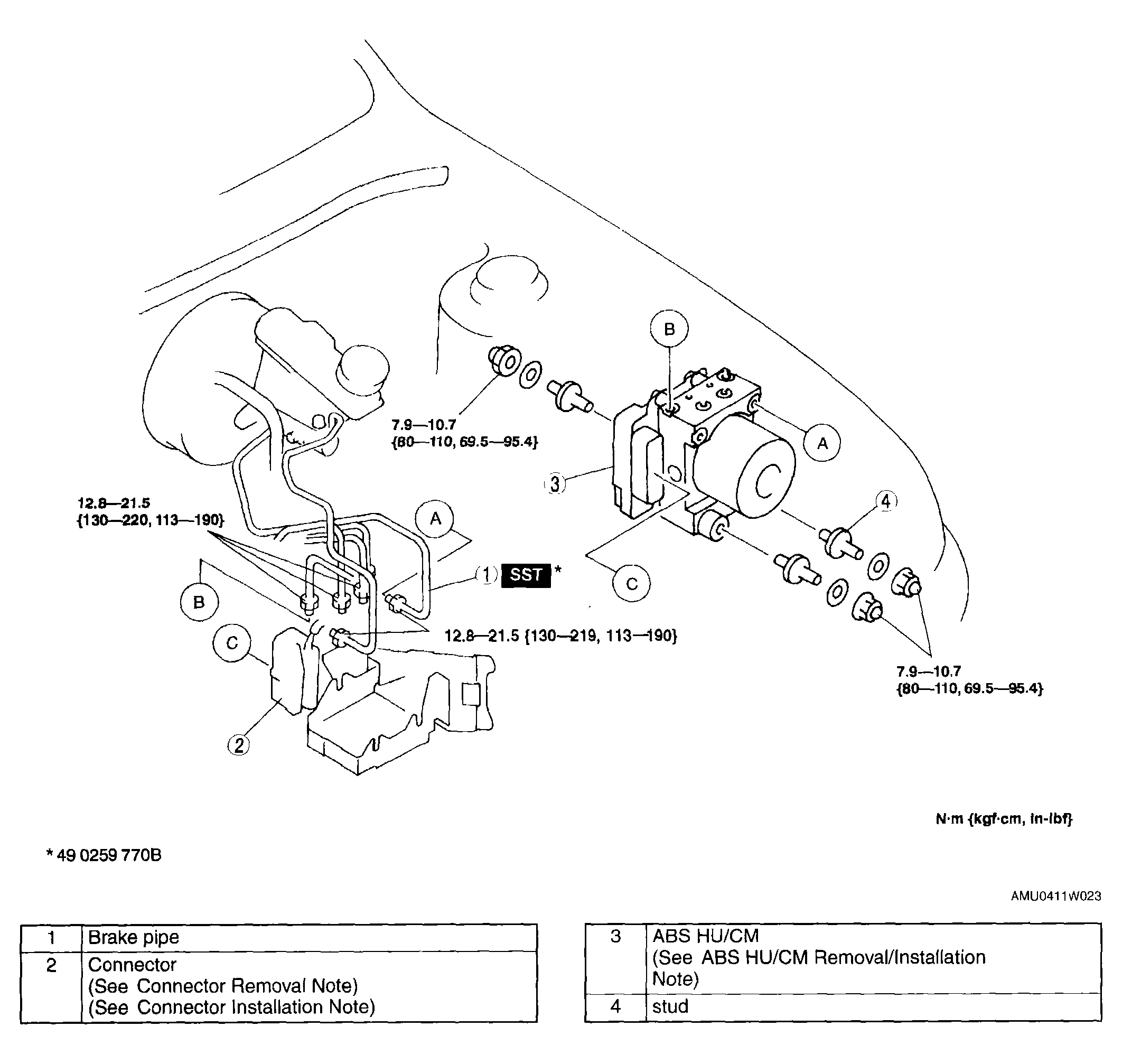

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
