2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE

Standard Table (reference value)

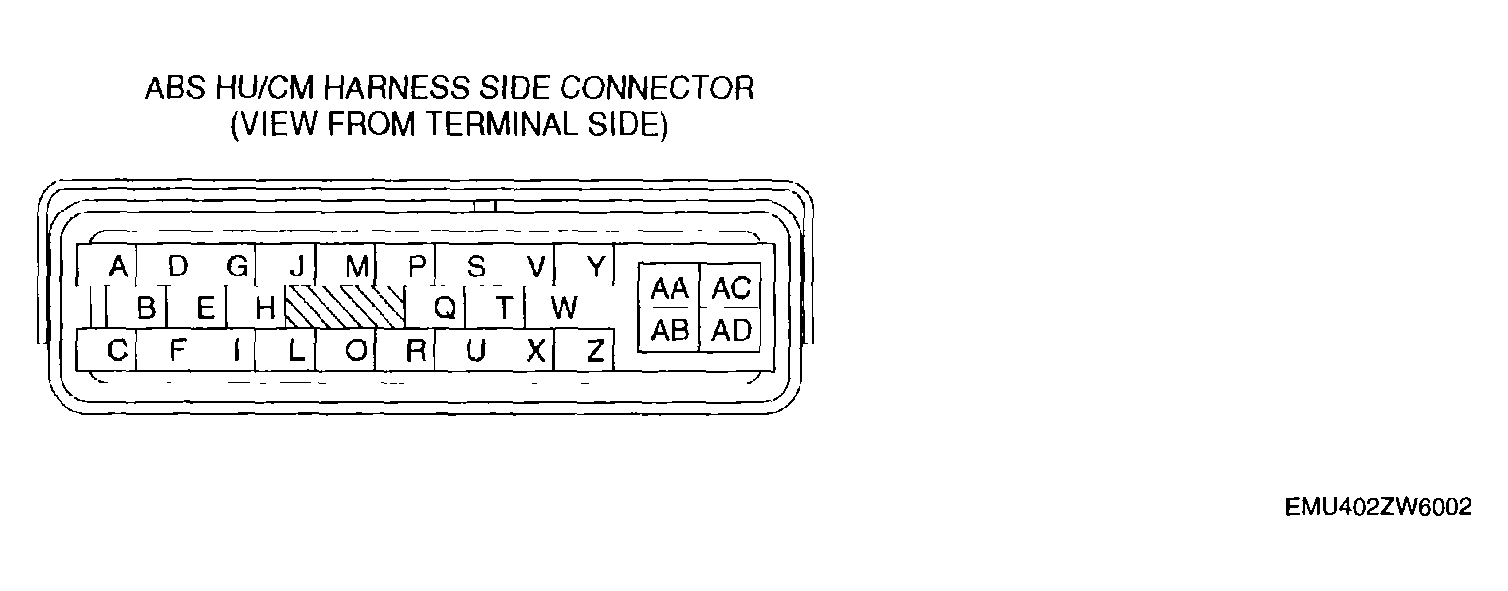

Fig 1: Identifying ABS/TCS HU/CM Connector
G04328666Courtesy of MAZDA MOTORS CORP.
STANDARD TABLE (REFERENCE VALUE)

Terminal Signal name Connected to Measured item Measured terminal (Measured condition) Standard Inspection item(s)
A RR wheel-speed (signal) RR wheel-speed sensor Continuity A-RR ABS wheel-speed sensor connector terminal 1 Continuity detected
  • Wiring harness (A-RR ABS wheel-speed sensor connector terminal 1)
B RR wheel-speed (ground) RR wheel-speed sensor Continuity B-RR ABS wheel-speed sensor connector terminal 2 Continuity detected
  • Wiring harness (B-RR ABS wheel-speed sensor connector terminal 2)
C RL wheel-speed (signal) RL wheel-speed sensor Continuity C-RL ABS wheel-speed sensor connector terminal 1 Continuity detected
  • Wiring harness (C-RL ABS wheel-speed sensor connector terminal 1)
D FR wheel-speed (ground) FR wheel-speed sensor Continuity D-FR ABS wheel-speed sensor connector terminal 2 Continuity detected
  • Wiring harness (D-FR ABS wheel-speed sensor connector terminal 2)
E FL wheel-speed (ground) FL wheel-speed sensor Continuity E-FL ABS wheel-speed sensor connector terminal 2 Continuity detected
  • Wiring harness (E-FL ABS wheel-speed sensor connector terminal 2)
F RL wheel-speed (ground) RL wheel-speed sensor Continuity F-RL ABS wheel-speed sensor connector terminal 2 Continuity detected
  • Wiring harness (F-RL ABS wheel-speed sensor connector terminal 2)
G FR wheel-speed (signal) FR wheel-speed sensor Continuity G-FR ABS wheel-speed sensor connector terminal 1 Continuity detected
  • Wiring harness (G-FR ABS wheel-speed sensor connector terminal 1)
H - - - - - -
I FL wheel-speed (signal) FL wheel-speed sensor Continuity I-FL ABS wheel-speed sensor connector terminal 1 Continuity detected
  • Wiring harness (I-FL ABS wheel-speed sensor connector terminal 1)
J - - - - - -
L(1) Torque down inhibition PCM Continuity L-PCM connector terminal 90 Continuity detected
  • Wiring harness (L-PCM connector terminal 90)
M(1) TCS indicator light TCS indicator light Continuity M-instrument cluster connector terminal 2K Continuity detected
  • Wiring harness (M-instrument cluster connector terminal 2K)
O(1) TCS OFF light TCS OFF light Continuity O-instrument cluster connector terminal 1C Continuity detected
  • Wiring harness (O-instrument cluster connector terminal 1C)
P(1) TCS OFF switch TCS OFF switch Continuity P-TCS OFF switch connector terminal A Continuity detected
  • Wiring harness (P-TCS OFF switch connector terminal A)
Q Vehicle speed output Instrument cluster Continuity Q-instrument cluster connector terminal 2G Continuity detected
  • Wiring harness (Q-instrument cluster connector terminal 2G)
R(1) Torque down request PCM Continuity R-PCM connector terminal 91 Continuity detected
  • Wiring harness (R-PCM connector terminal 91)
S(1) Engine speed PCM Continuity S-PCM connector terminal 21 Continuity detected
  • Wiring harness (S-PCM connector terminal 21)
T KLN KLN terminal of DLC-2 Continuity T-DLC-2 connector terminal KLN Continuity detected
  • Wiring harness (T-DLC-2 connector terminal KLN)
U(2) - - - - - -
V TBS TBS terminal of DLC-2 Continuity V-DLC-2 connector terminal TBS Continuity detected
  • Wiring harness (V-DLC-2 connector terminal TBS)
W ABS warning light ABS warning light Continuity W-instrument cluster connector terminal 1B Continuity detected
  • Wiring harness (W-instrument cluster connector terminal 1B)
X Brake system warning light Brake system warning light Continuity X-instrument cluster connector terminal 3S Continuity detected
  • Wiring harness (X-instrument cluster connector terminal 3S)
Y Brake switch Brake switch Voltage Y-AA (Brake pedal is depressed) B+
  • Wiring harness (Y-brake switch)
  • Brake switch
Y-AA (Brake pedal is released) 1 V or less
Z Power supply (system) Ignition switch Voltage Z-body ground (Ignition switch at ON) B+
  • Wiring harness (Z-ignition switch)
Z-body ground (Ignition switch is off) 1 V or less
AA Ground (ABS system) Body ground Continuity AA-body ground Continuity detected
  • Wiring harness (AA-body ground)
AB Power supply (ABS motor) Battery Voltage Under any condition B+
  • Wiring harness (AB-battery)
AC Power supply (Solenoid valve) Battery Voltage Under any condition B+
  • Wiring harness (AC-battery)
AD Ground (ABS motor) Body ground Continuity AD-body ground Continuity detected
  • Wiring harness (AD-body ground)
(1) With TCS
(2) Used for vehicle manufacturing, not used for ABS.
