2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Power Window Sub-Switch Inspection: Notes
- If inspecting the passenger's side, remove the switch panel.
- If inspecting the rear, remove the power window sub switch.

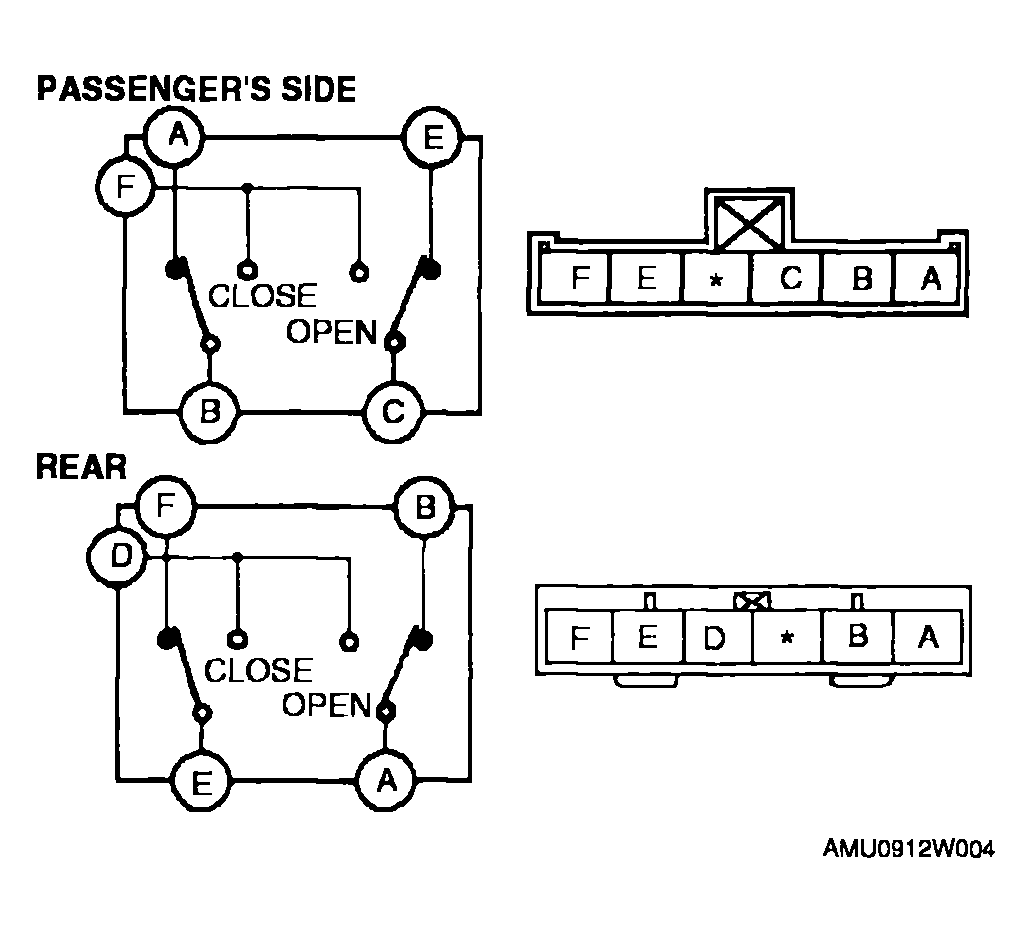

- Inspect for continuity between the power window sub switch terminals using an ohmmeter.
- If not as specified, replace the power window sub switch.
