2006 Mazda MPV ESFACTORY OEM SERVICE PROCEDURE
Power Window Motor Inspection
- Remove the power window motor. (See FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY , and/or REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .)

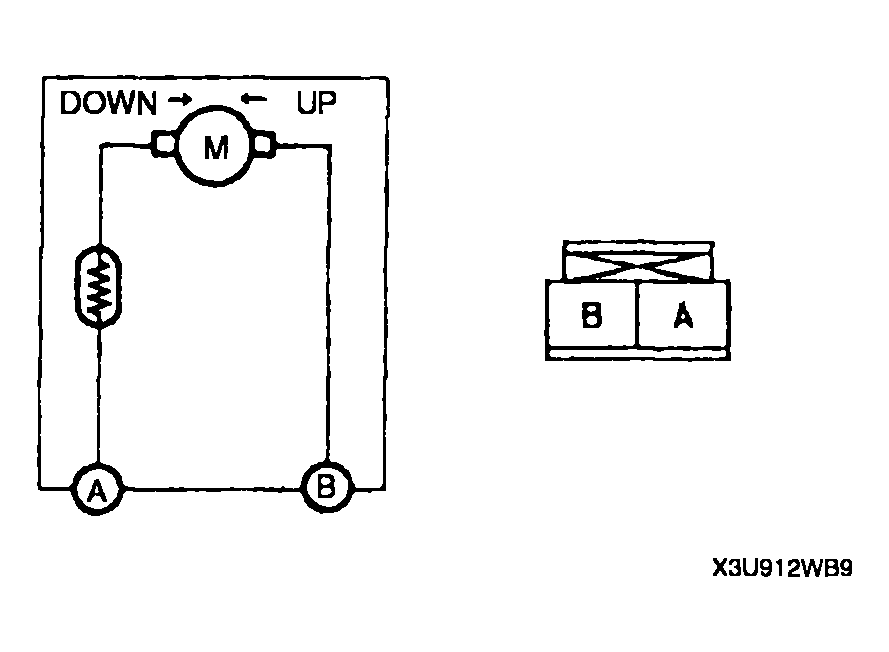

- Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
- If not as specified, replace the power window motor.
POWER WINDOW MOTOR INSPECTION CHART
| Terminal | Motor operation | |
|---|---|---|
| A | B | |
| GND | B+ | UP |
| B+ | GND | Down |
