2006 Mazda B3000 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Camshaft Position (CMP) Sensor Removal / Installation - 2.3L

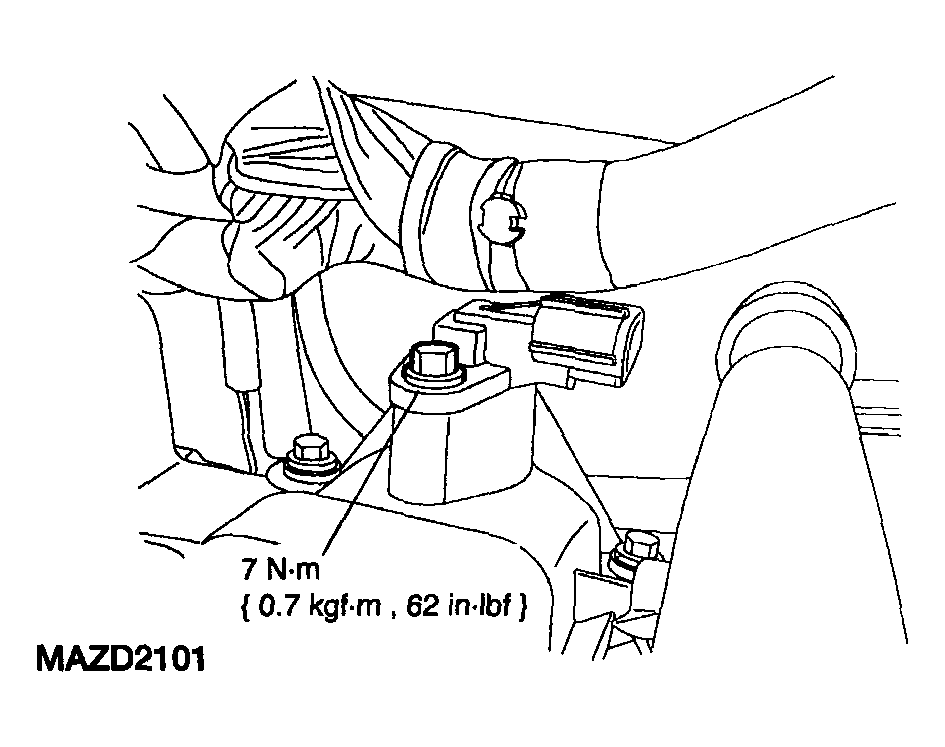

Fig 1: Removing Camshaft Position (CMP) Sensor

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Disconnect the camshaft position (CMP) sensor electrical connector.

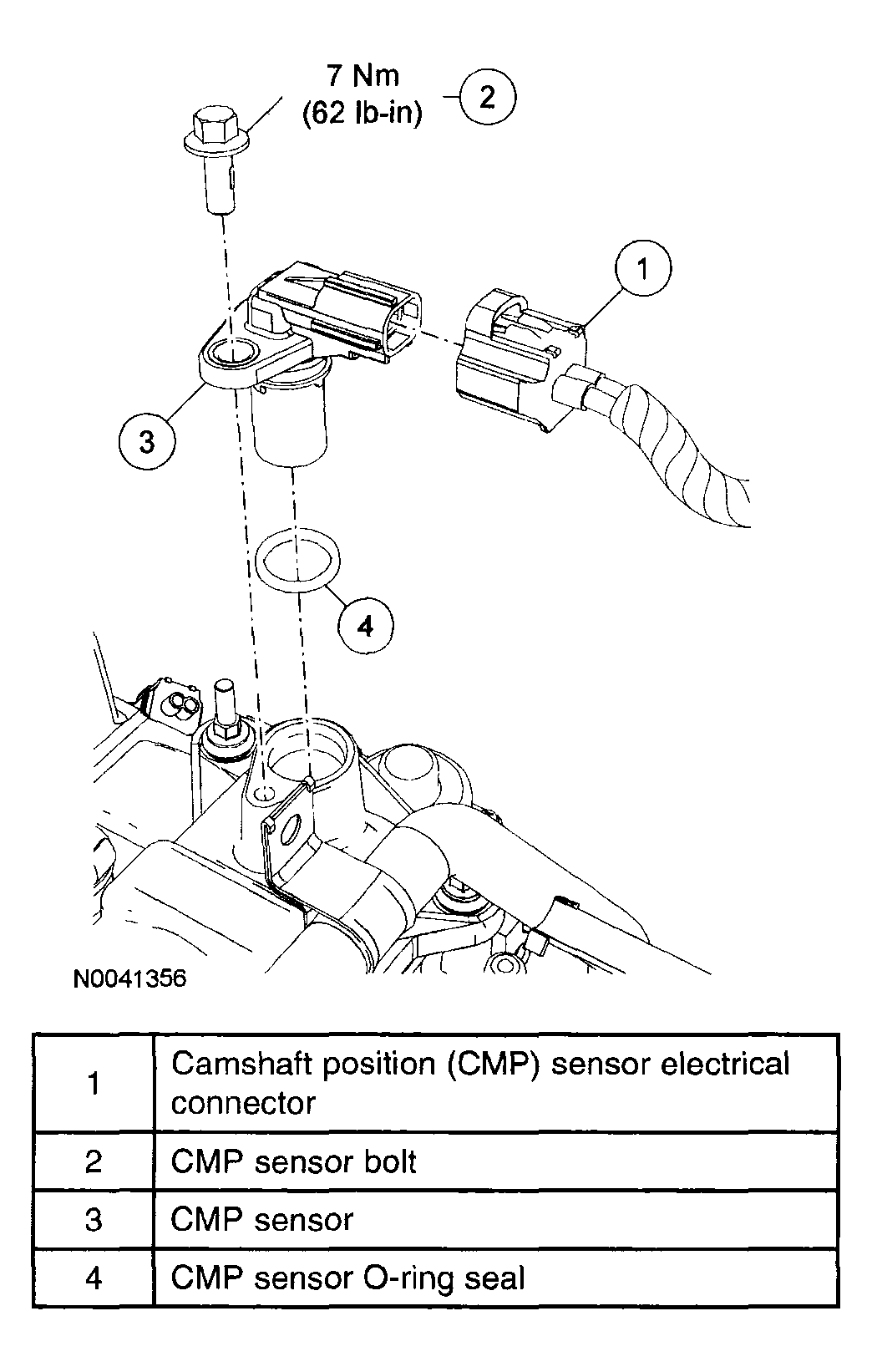

Fig 2: Removing Bolt And CMP Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and the CMP sensor.
NOTE:
- Lubricate the O-ring with clean engine oil.
To install, reverse the removal procedure.
